Introduction to AV pump, advantages, characteristics and principles of AV pump

AV pumpis an efficient and reliable material conveying equipment，the product looks beautiful.，be of simple construction,easy maintenance,energy-efficient,flexible installation,convenient maintenance。The following is to introduce the AV pump:

1、Brief introduction of AV pump

AV pumpis a common equipment for powder conveying，Because of its simple structure and relatively small maintenance workload, the maintenance cost is reduced、The pump body itself is wear-resistant and corrosion-resistant, and can run stably for a long time, reducing the failure and downtime caused by wear and corrosion、Its ash pump has only one moving part, which has excellent quality, simple structure, reliable performance and less maintenance workload、It is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process、During the normal operation of the system, ash accumulates at the outlet of the electric field of the dust collector above the AV pump, and the fly ash falls into the AV pump installed below under the action of gravity, and then is transported to ash storage through the ash conveying pipeline，it is widely used inchemical industry,medicine,ferrous metallurgy,metallurgy,light industry and other industries，generally, it is composed of air control box, level-sensing device, auxiliary blowing device, intake pipe, ash conveying pipeline and other major components，Widely used in environmental protection and dust removal, save space, material handling, process control and reduce material loss。

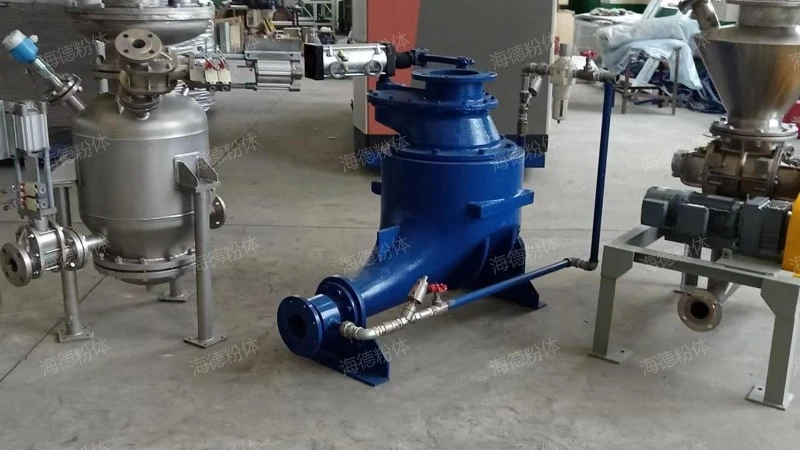

AV pump

2、AV pump application

AV pumpWidely used inenvironmental protection and dust removal,save space,process control,material handling,reduce material loss and so on，is a common powder conveying equipment，super quality and competitive price。

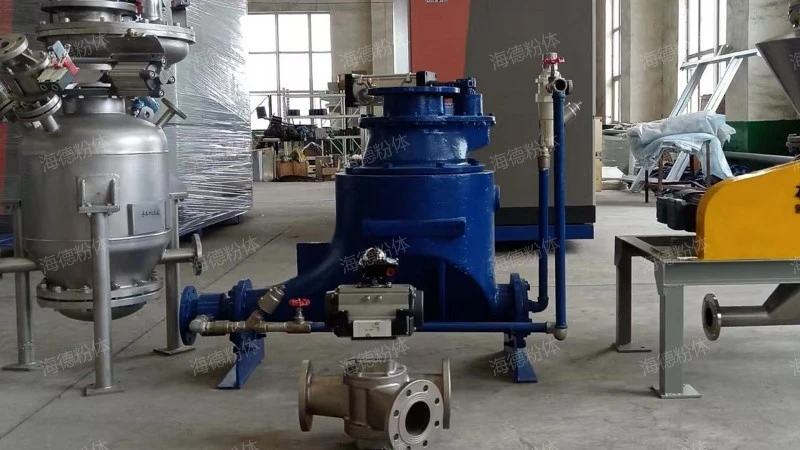

AV pump

3、AV pump function

AV pumpit has the functions of reduce material loss, process control, material handling, environmental protection and dust removal and save space，it has been widely used in glass fiber, semiconductor, glass fibre, forge, heavy industry and other industries，is a AV pump newly developed by Hyde powder。

AV pump

4、AV pump structure composition

The AV pump has the following structure

1. Air control box

Each AV pump is equipped with an air control box to control the running state of the AV pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the AV pump.

2. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV pump. It can be opened when needed, allowing materials to enter the AV pump, and closed when not needed to ensure that materials will not leak.

3. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV pump.

4. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV pump during the operation of the AV pump to prevent material blockage and deposition. This helps to keep the AV pump system running smoothly.

5. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the AV pump. A group of AV pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of AV pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

AV pump

5、Introduction of advantages of AV pump

AV pumps have the following advantages.

1. Wear and corrosion resistance

The AV pump pump itself is wear-resistant and corrosion-resistant, which can run stably for a long time and reduce the failure and downtime caused by wear and corrosion.

2. Closed conveying system

The AV pump adopts a fully enclosed transportation system, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation.

3. Low energy consumption

Compared with other types of pumps, the AV pump consumes less energy during operation, which helps to reduce the use cost.

4. Strong conveying capacity

Based on the power of compressed air and the principle of dense-phase low-speed pneumatic conveying, the AV pump can effectively and accurately convey materials and improve production efficiency.

5. easy accessibility

The AV pump operation is relatively simple, which is convenient for operators to get started quickly.

AV pump

6、Why choose Hyde?

Choosing a suitable AV pump manufacturer requires comprehensive consideration of many aspects. First of all, we should examine the strength of manufacturers, including production capacity, R&D team and industry experience. Strong manufacturers can better ensure product supply and innovation ability. Secondly, product quality is the key, and it is evaluated by product certification, material selection and manufacturing process to ensure the durability of products. Product performance can not be ignored, so we should choose manufacturers with matching technical parameters, rich types and customized services according to actual needs. After-sales service is equally important. Professional and timely service team, perfect after-sales content and extensive service network can make users worry about nothing. In addition, market reputation is also an important reference. We can understand the reputation and status of manufacturers through customer evaluation, industry reputation and award-winning honor. Finally, it is necessary to analyze the price and cost performance, and on the premise of ensuring the quality and performance, choose a manufacturer with reasonable price and high cost performance, so as to purchase AV pump products that meet the demand and have good cost performance.。

Hyde powder

AV pumpthe product looks atmospheric.，the main features are large conveying capacity, corrosion-resistant, compact structure, maintenance workload is small and strong adjustability。
