Introduction to AV ash tank pump, introduction to AV pump advantages and characteristics

AV ash tank pumpis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials，at runtime,Using the pressure difference generated by compressed air in the pipeline, the material is pushed to be transported along the pipeline at a speed lower than the suspension speed. This transportation mode avoids the complete mixing of materials and transmission media, reduces the risk of material wear and pipeline blockage, and allows a long transportation distance and moderate transportation capacity.，is a kind of high quality and low price AV ash tank pump，usually used in glass fibre, medicine, forge, chemical industry, metallurgy and other fields，is an advanced AV ash tank pump developed by our company in combination with the actual situation of the industry。The following is to introduce the AV ash tank pump:

1、Brief introduction of AV ash tank pump

AV ash tank pumpis a common equipment for pneumatic conveying，in the course of work,Mainly based on dense-phase low-speed pneumatic conveying. It transports materials at a speed lower than the suspension speed, and the materials move along the pipeline in a continuous dune shape or in a state where air plugs and material plugs are alternately arranged. This conveying mode allows the conveying speed of materials to be much lower than the suspension speed, thus avoiding the standard questions caused by the high speed of materials in traditional pneumatic conveying.，It has the functions of process control, save space, environmental protection and dust removal, material handling and reduce material loss，was developed and designed by Hyde。

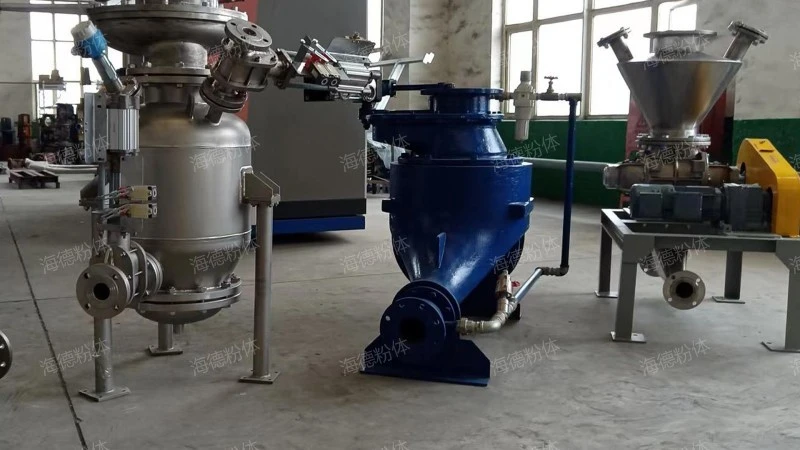

AV ash tank pump

2、AV ash tank pump introduction video

On-site aerial photography of AV ash tank pump。

AV ash tank pump

As you can see from the live video.，Hyde powder is a common powder conveying equipment。

3、AV ash tank pump advantage

The advantages of AV ash tank pump are as follows:

1. Multi-material transportation

The AV ash tank pump can transport a variety of materials including high temperature and rough materials, and has strong applicability.

2. High degree of automation

The AV ash tank pump is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process.

3. Small size and light weight

The AV ash tank pump has the characteristics of maintenance workload is small, which is convenient to move and install in different working occasions.

4. be of simple construction

The structure of the AV ash tank pump is relatively simple, the volume is relatively small, and the body is cast at one time, which makes its maintenance relatively easy after machining.

5. Maintenance workload is small

Because of the simple structure and excellent quality, the workload of AV ash tank pump maintenance is relatively small, which reduces the maintenance cost.

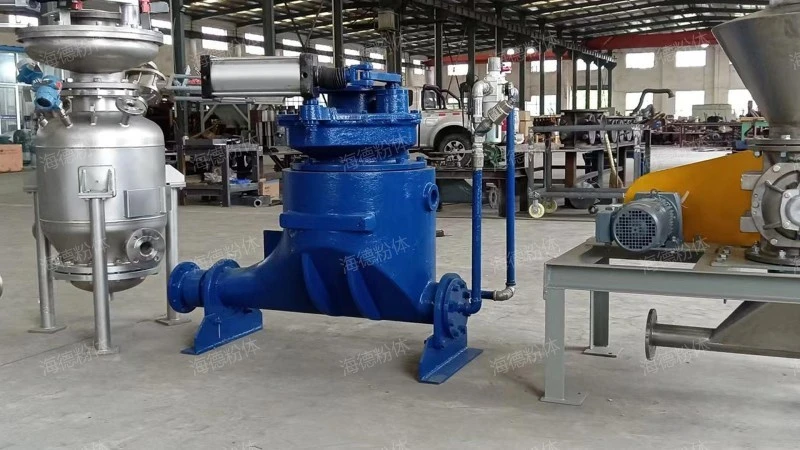

AV ash tank pump

4、AV ash tank pump HD real picture

The following pictures can be used for reference by new and old customers.。

AV ash tank pump

Note: All the pictures in this article were taken by Hyde manufacturer.。

5、Structural characteristics of AV ash tank pump

The AV ash tank pump structure is introduced as follows:

1. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV ash tank pump.

2. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the AV ash tank pump and the terminal ash storage. After being compressed in the AV ash tank pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

3. electric cabinet

The electric cabinet is the control center of the AV ash tank pump system, which is responsible for receiving signals from various sensors and controlling the operation of the AV ash tank pump according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the AV ash tank pump system.

4. Ash tank body

As the main part of the AV ash tank pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

5. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV ash tank pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV ash tank pump.

AV ash tank pump

6、How much is the AV ash tank pump?

The quotation of HydeAV ash tank pump is low. Hyde powder adopts the marketing mode of small profits but quick turnover. On the basis of ensuring product quality, the product is sold at a lower price. Due to different product specifications and models, the prices are different.。

AV ash tank pump

AV ash tank pumpUsing compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.，it is widely used in heavy industry, building materials, ferrous metallurgy, building materials, glass fibre and other industries，It has a wide range of uses, and is often used inreduce material loss,process control,material handling,environmental protection and dust removal,save space and so on。
