Introduction to AV ash tank conveying pump and AV pump structure principle

AV ash tank conveying pumpis a common equipment for pneumatic conveying。

1、Brief introduction of AV ash tank conveying pump

AV ash tank conveying pumpis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials，multifunctional, with functions such as environmental protection and dust removal, reduce material loss, save space, process control and material handling，is a popular AV ash tank conveying pump，the advantage is Low energy consumption during operation, which helps to reduce the use cost、It needs to be selected and used according to the specific needs and working environment, and at the same time, it needs to pay attention to maintenance to ensure its normal operation and prolong its service life、Its ash pump has only one moving part, which has excellent quality, simple structure, reliable performance and less maintenance workload、The structure is simple and the quality is excellent, and the maintenance workload of the AV ash tank conveying pump is relatively small, which reduces the maintenance cost、The pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials，be of high quality，low in price。

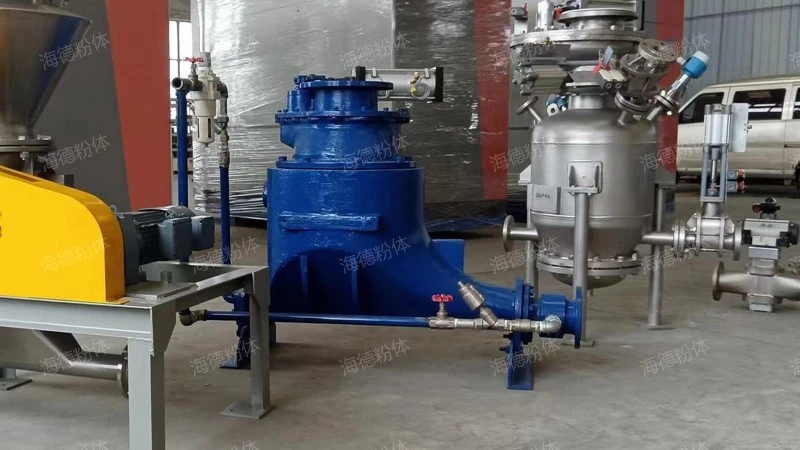

AV ash tank conveying pump

2、AV ash tank conveying pump structure

The AV ash tank conveying pump has the following structure

1. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the AV ash tank conveying pump. A group of AV ash tank conveying pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of AV ash tank conveying pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

2. electric cabinet

The electric cabinet is the control center of the AV ash tank conveying pump system, which is responsible for receiving signals from various sensors and controlling the operation of the AV ash tank conveying pump according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the AV ash tank conveying pump system.

3. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV ash tank conveying pump.

4. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV ash tank conveying pump during the operation of the AV ash tank conveying pump to prevent material blockage and deposition. This helps to keep the AV ash tank conveying pump system running smoothly.

5. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the AV ash tank conveying pump and the terminal ash storage. After being compressed in the AV ash tank conveying pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

AV ash tank conveying pump

3、Structural advantages of AV ash tank conveying pump

The AV ash tank conveying pump structure is introduced as follows:

1. Air control box

Each AV ash tank conveying pump is equipped with an air control box to control the running state of the AV ash tank conveying pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the AV ash tank conveying pump.

2. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV ash tank conveying pump. It can be opened when needed, allowing materials to enter the AV ash tank conveying pump, and closed when not needed to ensure that materials will not leak.

3. Ash tank body

As the main part of the AV ash tank conveying pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

4. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV ash tank conveying pump during the operation of the AV ash tank conveying pump to prevent material blockage and deposition. This helps to keep the AV ash tank conveying pump system running smoothly.

5. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV ash tank conveying pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV ash tank conveying pump.

AV ash tank conveying pump

4、AV ash tank conveying pump use

AV ash tank conveying pumpIt is a product series that integrates process control, material handling, environmental protection and dust removal, reduce material loss and material handling，the product looks atmospheric.。

AV ash tank conveying pump

5、AV ash tank conveying pump performance advantage

The advantages of AV ash tank conveying pump are as follows:

1. Wear and corrosion resistance

The AV ash tank conveying pump pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials.

2. Small size and light weight

The AV ash tank conveying pump has the characteristics of good ash-gas ratio, which is convenient to move and install in different working occasions.

3. Strong conveying capacity

The AV ash tank conveying pump has good conveying capacity and is suitable for the conveying requirements of various materials.

4. High degree of automation

The AV ash tank conveying pump is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process.

5. be of simple construction

The structure of the AV ash tank conveying pump is relatively simple, the volume is relatively small, and the body is cast at one time, which makes its maintenance relatively easy after machining.

AV ash tank conveying pump

6、Brief introduction of AV ash tank conveying pump

AV ash tank conveying pumpis a commonly used powder conveying equipment，it is mainly composed of pressure transducer, ash conveying pipeline, air control box, intake pipe and ash tank body，at work,Using compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.，is carefully developed by Hyde powder combined with advanced technology。

AV ash tank conveying pump

AV ash tank conveying pumpis a common AV ash tank conveying pump，it has been widely used in medicine, forge, semiconductor, building materials, glass fibre and other industries。
