What is a Stainless steel AV conveying pump? Introduction to the advantages and characteristics of AV pump functions

Stainless steel AV conveying pumpis a common equipment for pneumatic conveying，Structure consists of intake pipe, feed dome valve, intake pipe, feed dome valve, air control box and so on，This Stainless steel AV conveying pumpThe structural design is simple, novel and special.。The following is to introduce the Stainless steel AV conveying pump:

1、Brief introduction of Stainless steel AV conveying pump

Stainless steel AV conveying pumpis a commonly used powder conveying equipment，is a Stainless steel AV conveying pump，the product looks beautiful.，the main features are convenient maintenance, stand wear and tear, be of simple construction, easy maintenance and good ash-gas ratio，The price is more affordable。

Stainless steel AV conveying pump

2、Stainless steel AV conveying pump advantage

The advantages of Stainless steel AV conveying pump are as follows:

1. High degree of automation

The Stainless steel AV conveying pump is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process.

2. Wear and corrosion resistance

The Stainless steel AV conveying pump pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials.

3. Small size and light weight

The Stainless steel AV conveying pump has the characteristics of environmental protection, which is convenient to move and install in different working occasions.

4. Small size and light weight

The Stainless steel AV conveying pump has the characteristics of compact structure, which is convenient to move and install in different working occasions.

5. Strong conveying capacity

Based on the power of compressed air and the principle of dense-phase low-speed pneumatic conveying, the Stainless steel AV conveying pump can effectively and accurately convey materials and improve production efficiency.

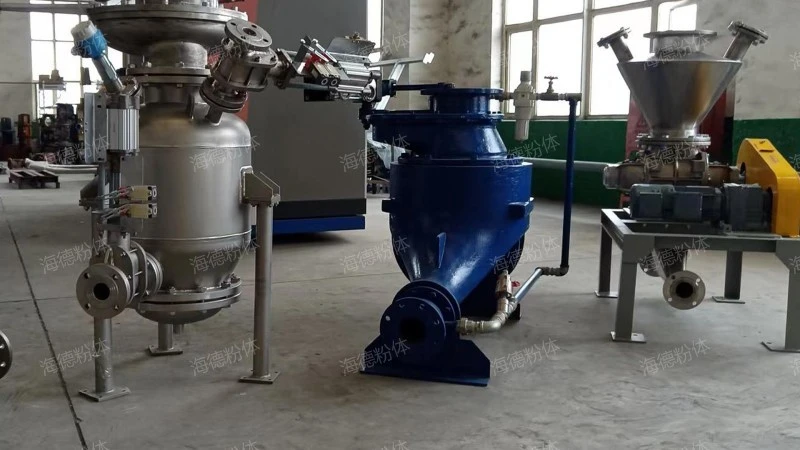

Stainless steel AV conveying pump

3、Working principle of Stainless steel AV conveying pump

Stainless steel AV conveying pumpat runtime,Using compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.。

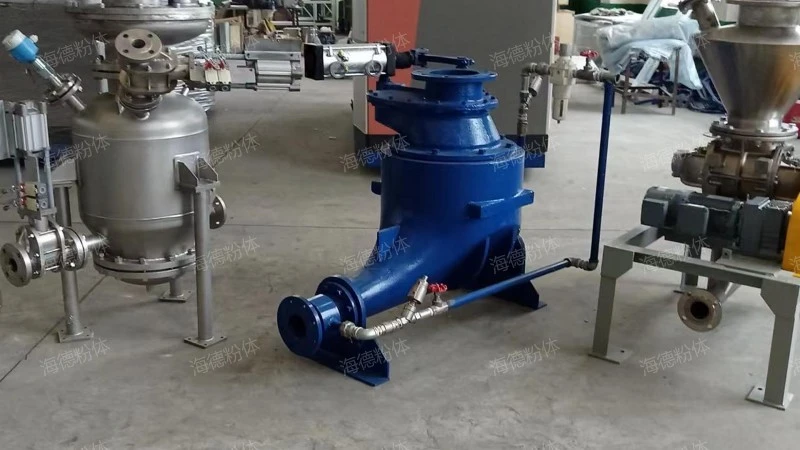

Stainless steel AV conveying pump

4、Stainless steel AV conveying pump structure composition

The Stainless steel AV conveying pump structure is introduced as follows:

1. Ash tank body

As the main part of the Stainless steel AV conveying pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

2. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the Stainless steel AV conveying pump during the operation of the Stainless steel AV conveying pump to prevent material blockage and deposition. This helps to keep the Stainless steel AV conveying pump system running smoothly.

3. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the Stainless steel AV conveying pump.

4. Feed dome valve

The feeding dome valve is the key component to control the material entering the Stainless steel AV conveying pump. It can be opened when needed, allowing materials to enter the Stainless steel AV conveying pump, and closed when not needed to ensure that materials will not leak.

5. electric cabinet

The electric cabinet is the control center of the Stainless steel AV conveying pump system, which is responsible for receiving signals from various sensors and controlling the operation of the Stainless steel AV conveying pump according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the Stainless steel AV conveying pump system.

Stainless steel AV conveying pump

5、Stainless steel AV conveying pump function

Stainless steel AV conveying pumpit has the functions of save space, process control, environmental protection and dust removal, material handling and reduce material loss，is a kind of Stainless steel AV conveying pump manufactured by Hyde。

Stainless steel AV conveying pump

Stainless steel AV conveying pumpit has the functions of save space, process control, reduce material loss, material handling and environmental protection and dust removal，at the start of the operation,Mainly based on the power of compressed air, the continuous transportation of materials is realized by dense-phase low-speed pneumatic transportation.，features include flexible installation, maintenance workload is small, strong adjustability, corrosion-resistant and large conveying capacity。
