What is a Carbon steel AV conveying pump? Introduction to the Working Principle of AV pump

Carbon steel AV conveying pumpis an important part of dense-phase pneumatic conveying system to use the energy of air flow to continuously convey powdery and granular materials。The following is to introduce the Carbon steel AV conveying pump:

1、Brief introduction of Carbon steel AV conveying pump

Carbon steel AV conveying pumpis a common powder conveying equipment，the principle is simple.Using compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.，It has a wide range of uses, including reduce material loss, process control, save space, environmental protection and dust removal and save space，Structure consists of level-sensing device, pressure transducer, intake pipe, air control box, ash tank body and so on，it is an ideal choice for customers to buy Carbon steel AV conveying pump。

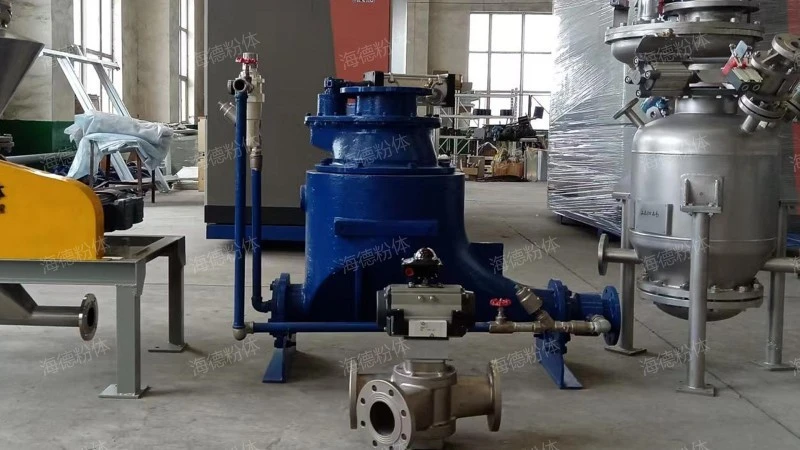

Carbon steel AV conveying pump

2、Carbon steel AV conveying pump explanation video

Hyde provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Carbon steel AV conveying pumpt operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

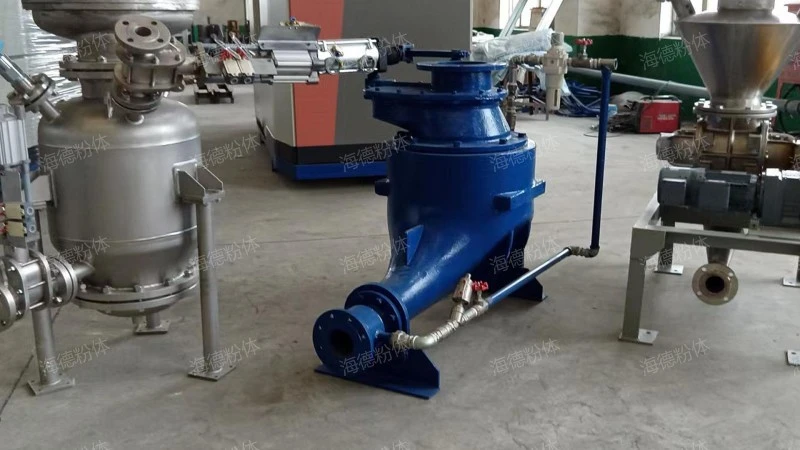

Carbon steel AV conveying pump

As you can see from the live video.，Hyde powder the product looks atmospheric.。

3、Carbon steel AV conveying pump function

Carbon steel AV conveying pumpmultifunctional, with functions such as environmental protection and dust removal, reduce material loss, material handling, process control and save space，the product looks beautiful.，is a common Carbon steel AV conveying pump，the advantage is The structure is relatively simple, the volume is relatively small, and the body is cast at one time and machined, which makes its maintenance relatively easy、Able to transport a variety of materials including high temperature and rough materials、Low energy consumption during operation, which helps to reduce the use cost、It is suitable for multi-point dry material transportation of most dust collectors、Compact structure, low installation space, suitable for various venues，the main features are large conveying capacity, flexible installation, stand wear and tear, compact structure and maintenance workload is small。

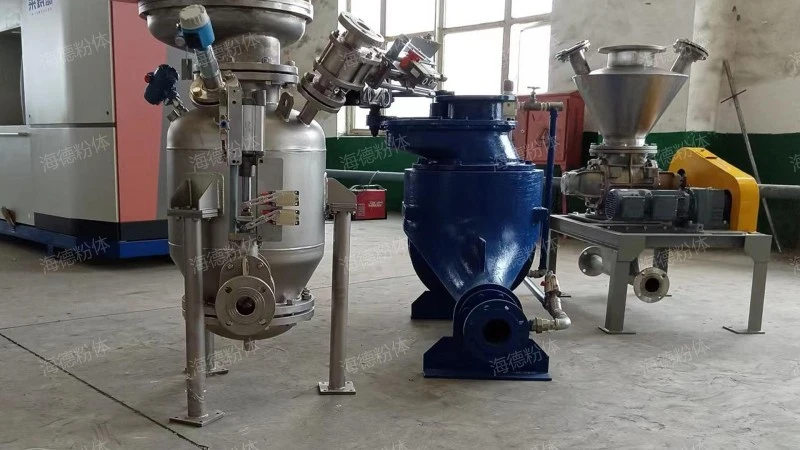

Carbon steel AV conveying pump

4、Carbon steel AV conveying pump structure

The Carbon steel AV conveying pump structure is introduced as follows:

1. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the Carbon steel AV conveying pump. A group of Carbon steel AV conveying pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of Carbon steel AV conveying pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

2. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the Carbon steel AV conveying pump and the terminal ash storage. After being compressed in the Carbon steel AV conveying pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

3. Feed dome valve

The feeding dome valve is the key component to control the material entering the Carbon steel AV conveying pump. It can be opened when needed, allowing materials to enter the Carbon steel AV conveying pump, and closed when not needed to ensure that materials will not leak.

4. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the Carbon steel AV conveying pump.

5. pressure transducer

The pressure sensor is used to monitor the pressure change in the Carbon steel AV conveying pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the Carbon steel AV conveying pump.

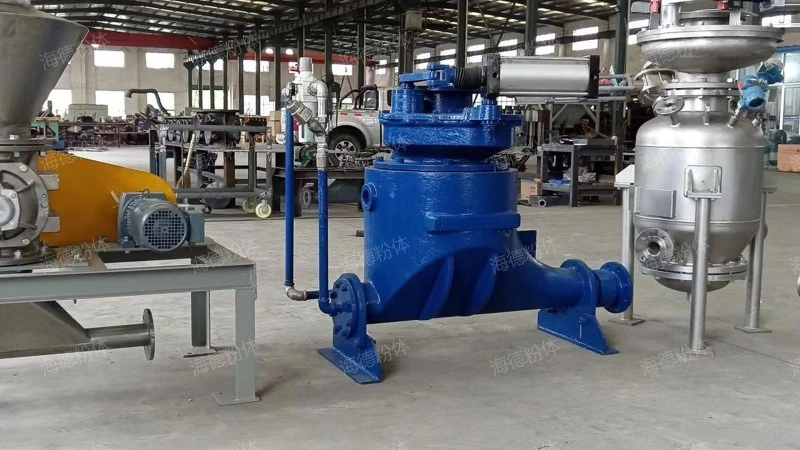

Carbon steel AV conveying pump

5、Carbon steel AV conveying pump application

Carbon steel AV conveying pumpIt is a product series that integrates material handling, process control, reduce material loss, environmental protection and dust removal and save space，it is widely used inchemical industry,medicine,glass fiber,forge,heavy industry and other industries，it has the functions of save space, process control, environmental protection and dust removal, material handling and reduce material loss。

Carbon steel AV conveying pump

Carbon steel AV conveying pumpusually used in glass fibre, ferrous metallurgy, metallurgy, semiconductor, building materials and other fields，is a popular Carbon steel AV conveying pump，generally, it is composed of auxiliary blowing device, level-sensing device, ash conveying pipeline, pressure transducer, electric cabinet and other major components，This productSimple structure and advanced technology.。
