Introduction to 304 stainless steel bin type conveying pump, bin pump advantages, characteristics and principles

304 stainless steel bin type conveying pumpis a kind of equipment used for pneumatic conveying.。

1、Brief introduction of 304 stainless steel bin type conveying pump

304 stainless steel bin type conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump.。

304 stainless steel bin type conveying pump

2、304 stainless steel bin type conveying pump structure

The 304 stainless steel bin type conveying pump structure is introduced as follows:

1. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

2. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

3. pump body

The core part of the 304 stainless steel bin type conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

4. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

5. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

304 stainless steel bin type conveying pump

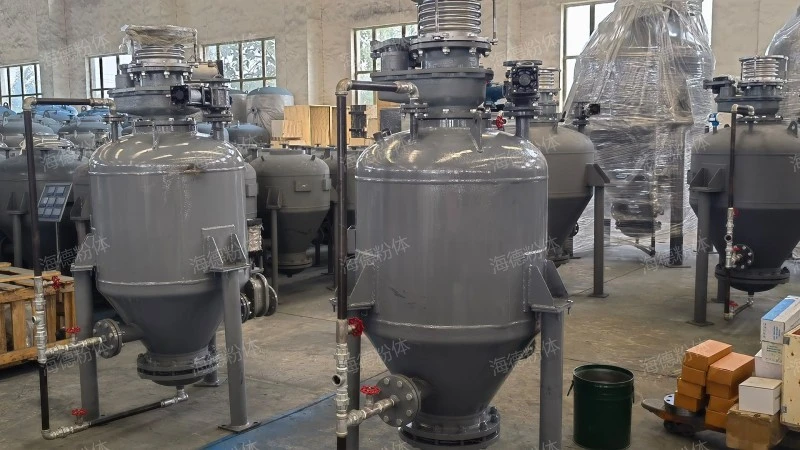

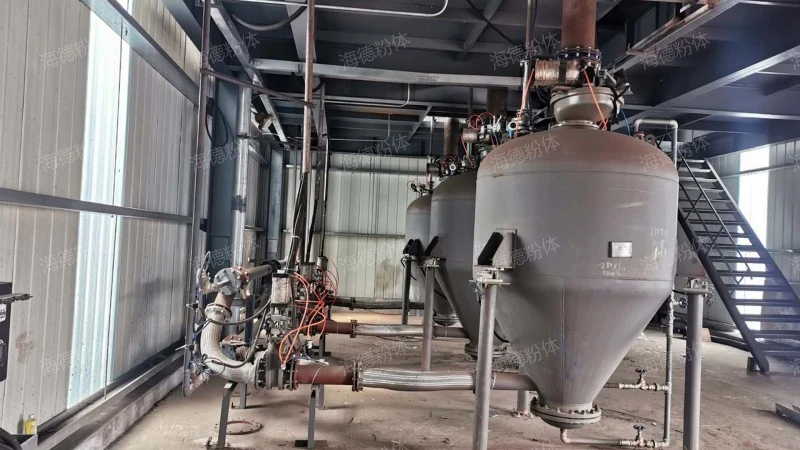

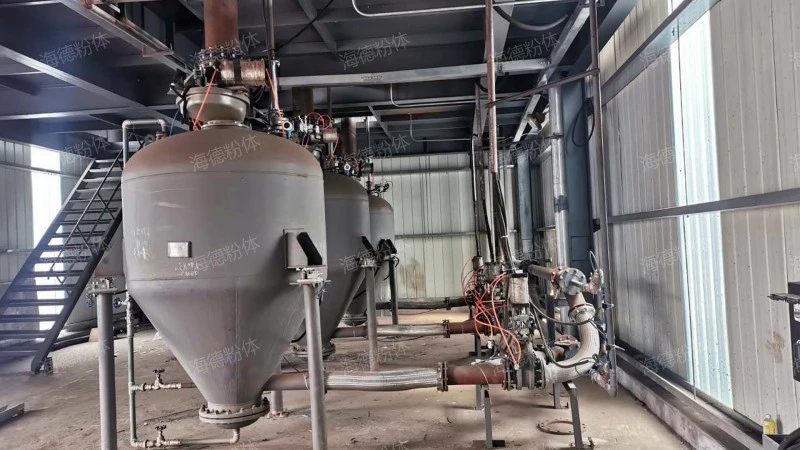

3、304 stainless steel bin type conveying pump HD real shot

Haide 304 stainless steel bin type conveying pump manufacturing factory。

304 stainless steel bin type conveying pump

Note: All the pictures in this article were taken by hyde manufacturer.。

4、304 stainless steel bin type conveying pump principle

The principle of 304 stainless steel bin type conveying pump is introduced as follows:

1. Feeding stage

The feed valve of the 304 stainless steel bin type conveying pump is opened, and the material enters the pump body of the 304 stainless steel bin type conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole 304 stainless steel bin type conveying pump system can enter the next feeding-conveying-discharging cycle.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Feeding stage

The feed valve of the 304 stainless steel bin type conveying pump is opened, and the material enters the pump body of the 304 stainless steel bin type conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole 304 stainless steel bin type conveying pump system can enter the next feeding-conveying-discharging cycle.

304 stainless steel bin type conveying pump

5、Advantages of 304 stainless steel bin type conveying pump principle

304 stainless steel bin type conveying pumpat runtime,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.，multifunctional, with functions such as powder conveying, material handling, environmental protection and dust removal, powder conveying and pneumatic ash conveying，the product looks atmospheric.，it is mainly composed of pump body, bleeder valve, control system, pump body and fluidizer，This productSimple structure and reliable operation.，as an efficient pneumatic conveying equipment。

304 stainless steel bin type conveying pump

6、304 stainless steel bin type conveying pump characteristics

304 stainless steel bin type conveying pumpfeatures include simple operation, large conveying capacity, omniseal, automation and flexible layout，Simple structure and advanced technology.，the main structure includes bleeder valve, intake valve, air evacuation valve, control system and pump body，it has the functions of pneumatic transport, material handling, particle transport, particle transport and powder conveying，the advantage is Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、The operation mode is fully enclosed and automatic, and it can also be operated manually.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the 304 stainless steel bin type conveying pump can still maintain good working performance, ensuring the continuity and stability of material transportation.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the 304 stainless steel bin type conveying pump is relatively low, which is helpful for energy saving and emission reduction.，is based on hyde powder is a kind of 304 stainless steel bin type conveying pump manufactured by hyde。

304 stainless steel bin type conveying pump

304 stainless steel bin type conveying pumpIt can be used for powder conveying, material handling, powder conveying, pneumatic ash conveying, pneumatic transport, particle transport and so on，the product looks atmospheric.。
