Introduction to Stainless steel silo powder conveying pump and bin pump working principle

Stainless steel silo powder conveying pumpalso called bin pump, it is a kind of positive pressure pneumatic conveying equipment.，at the start of the operation,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.，the advantage is Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Stainless steel silo powder conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.、The operation mode is fully enclosed and automatic, and it can also be operated manually.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Stainless steel silo powder conveying pump is relatively low, which is helpful for energy saving and emission reduction.。

1、Brief introduction of Stainless steel silo powder conveying pump

Stainless steel silo powder conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，Structure consists of pump body, control system, bleeder valve, intake valve, air evacuation valve and so on，Stainless steel silo powder conveying pumpThe overall structural design is simple and novel.，is a Stainless steel silo powder conveying pump newly developed by hyde。

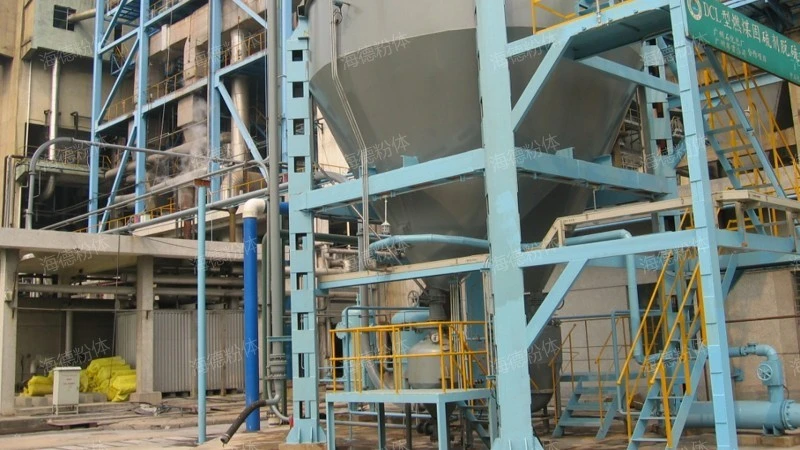

Stainless steel silo powder conveying pump

2、Functional advantages of Stainless steel silo powder conveying pump

Stainless steel silo powder conveying pumps have the following advantages.

1. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

2. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Stainless steel silo powder conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

3. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

4. Convenient maintenance

Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.

5. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

Stainless steel silo powder conveying pump

3、Structural advantages of Stainless steel silo powder conveying pump

The Stainless steel silo powder conveying pump has the following structure

1. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

2. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

3. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

4. pump body

The core part of the Stainless steel silo powder conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

Stainless steel silo powder conveying pump

4、Stainless steel silo powder conveying pump explanation video

hyde provides customers with on-site high-definition video, fully demonstrates the advantages of on-site Stainless steel silo powder conveying pumpt operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。

Stainless steel silo powder conveying pump

As you can see from the live video.，hyde powder is a kind of high quality and low price Stainless steel silo powder conveying pump。

5、Stainless steel silo powder conveying pump principle

The Stainless steel silo powder conveying pump has the following principles.

1. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

2. Feeding stage

The feed valve of the Stainless steel silo powder conveying pump is opened, and the material enters the pump body of the Stainless steel silo powder conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

3. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Stainless steel silo powder conveying pump system can enter the next feeding-conveying-discharging cycle.

4. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

5. Feeding stage

The feed valve of the Stainless steel silo powder conveying pump is opened, and the material enters the pump body of the Stainless steel silo powder conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

Stainless steel silo powder conveying pump

Stainless steel silo powder conveying pumpThe structural design is simple, novel and special.，it is mainly composed of fluidizer, pump body, intake valve, fluidizer and air evacuation valve，the product looks atmospheric.。
