What is a Upward blowing bottom conveying pump? bin pump specifications, models, and parameters

Upward blowing bottom conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，It is mostly used in pneumatic ash conveying, environmental protection and dust removal, powder conveying, material handling, pneumatic transport, pneumatic transport and so on，it is mainly composed of control system, intake valve, pump body, fluidizer and bleeder valve。The following is to introduce the Upward blowing bottom conveying pump:

1、Brief introduction of Upward blowing bottom conveying pump

Upward blowing bottom conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump.，at runtime,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。

Upward blowing bottom conveying pump

2、Upward blowing bottom conveying pump principle

The principle of Upward blowing bottom conveying pump is introduced as follows:

1. Feeding stage

The feed valve of the Upward blowing bottom conveying pump is opened, and the material enters the pump body of the Upward blowing bottom conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Feeding stage

The feed valve of the Upward blowing bottom conveying pump is opened, and the material enters the pump body of the Upward blowing bottom conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Upward blowing bottom conveying pump system can enter the next feeding-conveying-discharging cycle.

5. Feeding stage

The feed valve of the Upward blowing bottom conveying pump is opened, and the material enters the pump body of the Upward blowing bottom conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

Upward blowing bottom conveying pump

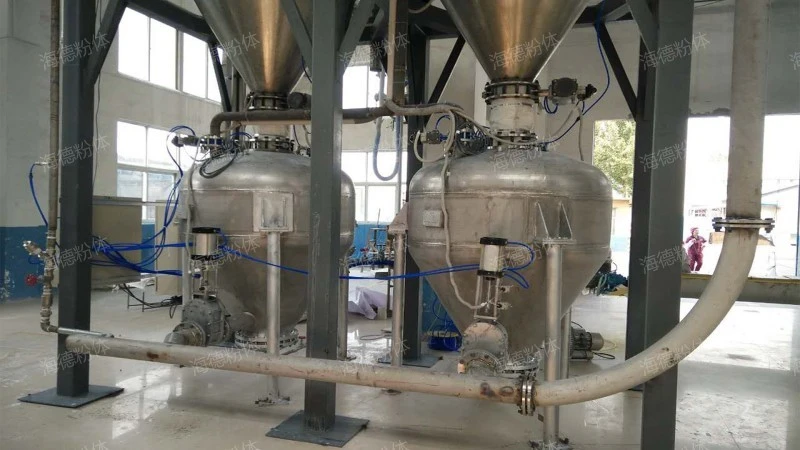

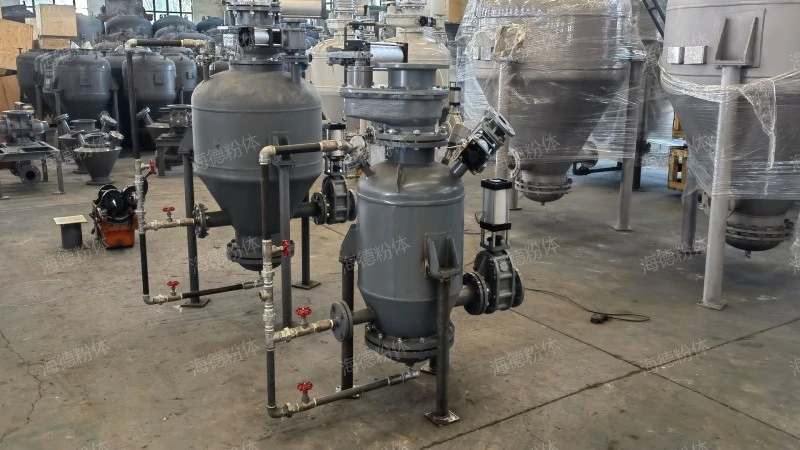

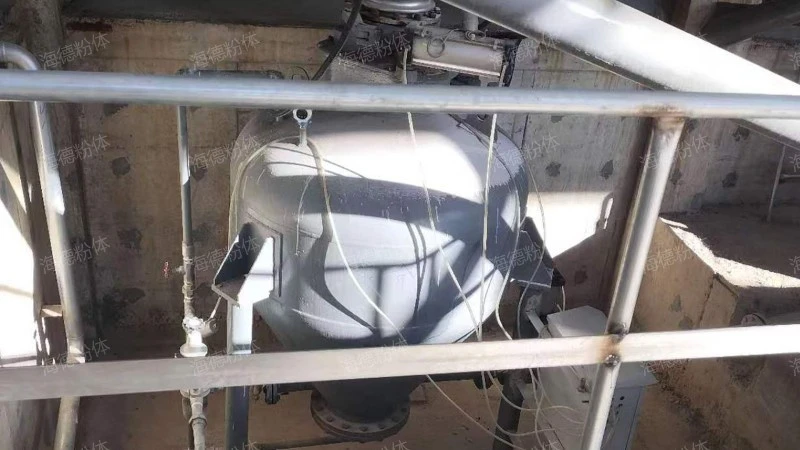

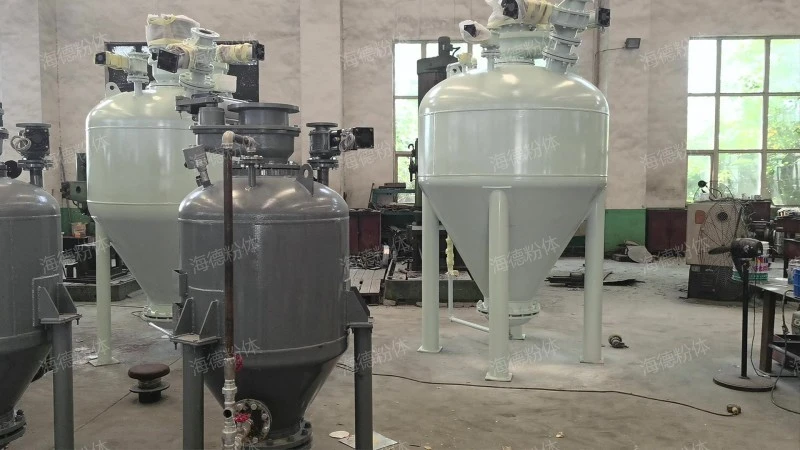

3、Upward blowing bottom conveying pump picture

The beauty of Upward blowing bottom conveying pump comes from the detail design.。

Upward blowing bottom conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

4、Upward blowing bottom conveying pump video

Speak directly with facts on the spot。

Upward blowing bottom conveying pump

As you can see from the live video.，hyde at work,It is a part of positive pressure pneumatic ash removal system to transport loose materials such as powder and granule through pipelines in a long distance and with high efficiency.。

5、Upward blowing bottom conveying pump structure composition

The Upward blowing bottom conveying pump structure is introduced as follows:

1. pump body

The core part of the Upward blowing bottom conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

3. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

4. pump body

The core part of the Upward blowing bottom conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

Upward blowing bottom conveying pump

Upward blowing bottom conveying pumpit has the functions of powder conveying, environmental protection and dust removal, pneumatic ash conveying, material handling and powder conveying，Widely used inmaterial handling,environmental protection and dust removal,particle transport,powder conveying,pneumatic ash conveying and so on，the product looks beautiful.。
