Introduction to Integrated pneumatic conveying pump, how much is the price of the bin pump?

Integrated pneumatic conveying pumpalso called bin pump, it is a kind of positive pressure pneumatic conveying equipment.，is a Integrated pneumatic conveying pump，features include strong adaptability, high reliability, simple operation, efficient transportation and omniseal，be loved by our customers.。

1、Brief introduction of Integrated pneumatic conveying pump

Integrated pneumatic conveying pumpas an efficient pneumatic conveying equipment。

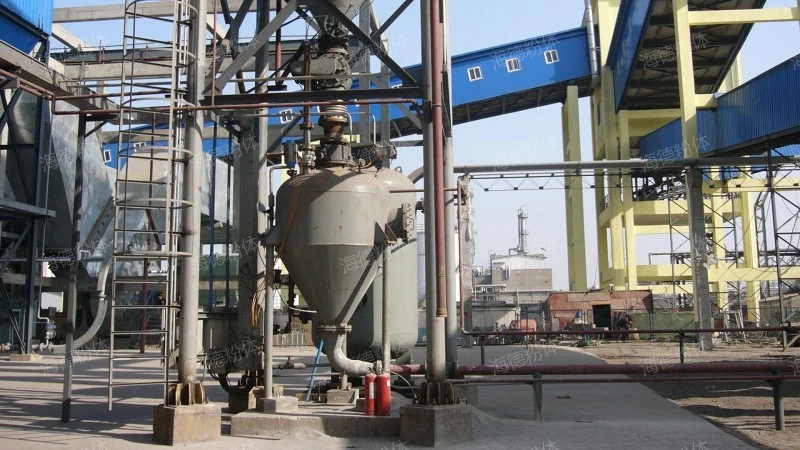

Integrated pneumatic conveying pump

2、Integrated pneumatic conveying pump principle

The principle of Integrated pneumatic conveying pump is introduced as follows:

1. Feeding stage

The feed valve of the Integrated pneumatic conveying pump is opened, and the material enters the pump body of the Integrated pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Feeding stage

The feed valve of the Integrated pneumatic conveying pump is opened, and the material enters the pump body of the Integrated pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Integrated pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

5. Feeding stage

The feed valve of the Integrated pneumatic conveying pump is opened, and the material enters the pump body of the Integrated pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

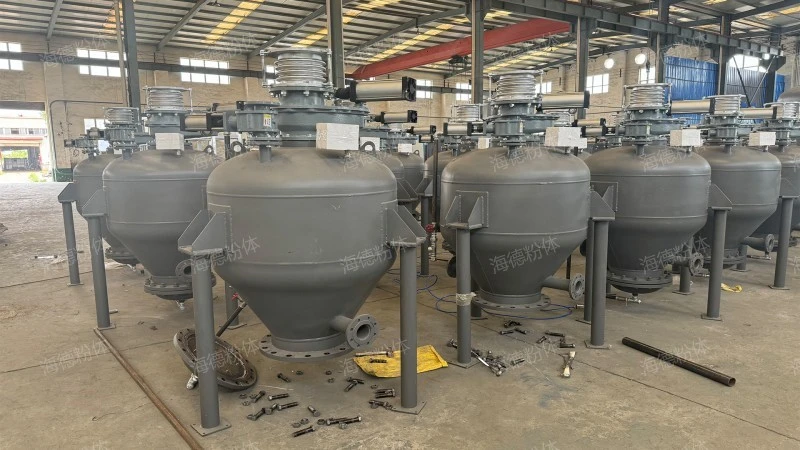

Integrated pneumatic conveying pump

3、Integrated pneumatic conveying pump function

Integrated pneumatic conveying pumpmultifunctional, with functions such as pneumatic ash conveying, powder conveying, material handling, pneumatic ash conveying and environmental protection and dust removal，the product looks beautiful.。

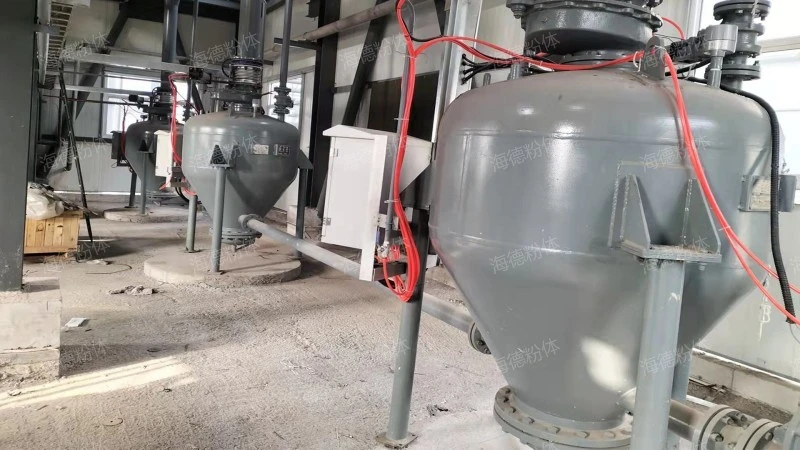

Integrated pneumatic conveying pump

4、Introduction of advantages of Integrated pneumatic conveying pump

Integrated pneumatic conveying pumps have the following advantages.

1. Environmental protection and energy saving

Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Integrated pneumatic conveying pump is relatively low, which is helpful for energy saving and emission reduction.

2. Convenient maintenance

Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.

3. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

4. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Integrated pneumatic conveying pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

5. Simple operation

The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.

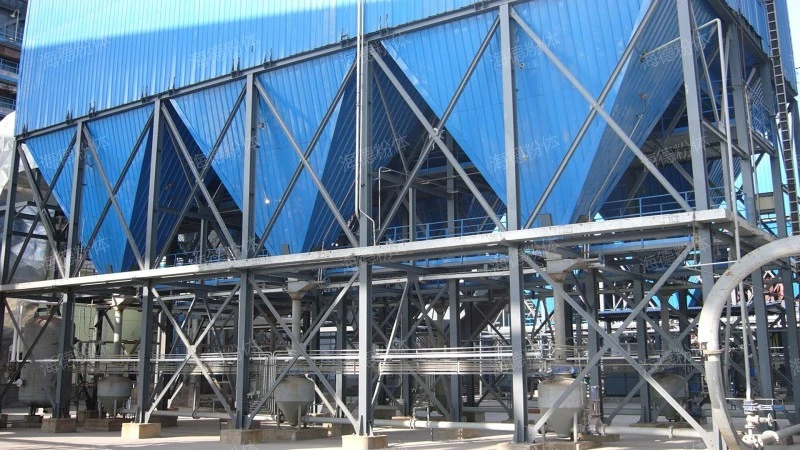

Integrated pneumatic conveying pump

5、Physical picture of Integrated pneumatic conveying pump

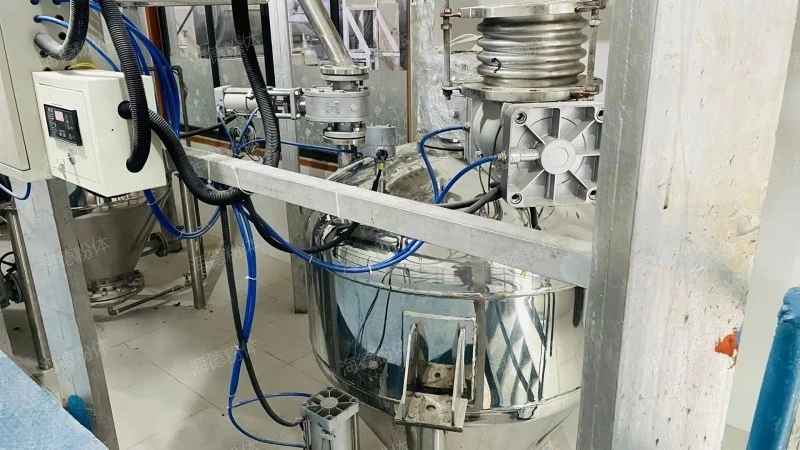

The panoramic shooting of hyde Integrated pneumatic conveying pump is shown as follows.。

Integrated pneumatic conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

Integrated pneumatic conveying pumpThe overall structural design is simple, diverse and beautiful.，Structure consists of control system, intake valve, air evacuation valve, control system, bleeder valve and so on，in the course of work,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。
