Introduction to Carbon steel rotary feeder, Feeder advantages, characteristics and principles

Carbon steel rotary feederis widely used in powder engineering, pneumatic conveying and dust removal system.。

1、Brief introduction of Carbon steel rotary feeder

Carbon steel rotary feederis an efficient and flexible material conveying equipment.，features include handsome appearance, flexible adjustment, flexible configuration, compact structure and strong reliability，the advantage is It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.、The structure design is reasonable, which is convenient for daily maintenance and overhaul. At the same time, its good sealing performance also reduces the complexity and frequency of maintenance work.、Due to the use of high-quality materials and advanced technology, the service life of the Carbon steel rotary feeder is longer, reducing the frequency of replacement and maintenance.、The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.、Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.，favorable price，reliable quality。

Carbon steel rotary feeder

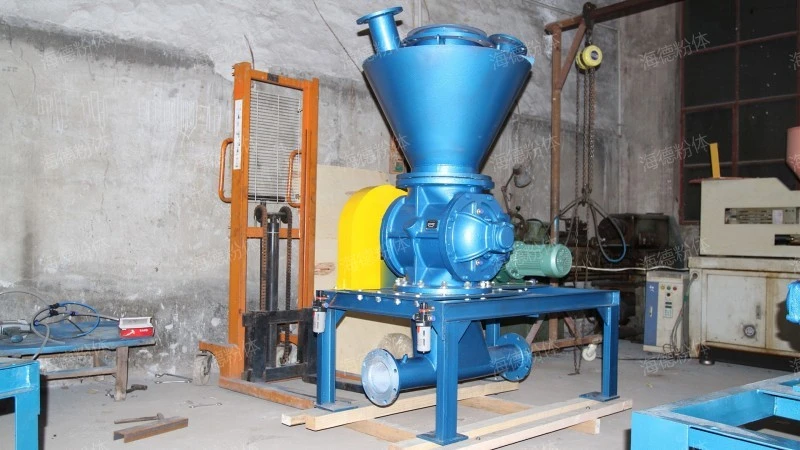

2、Carbon steel rotary feeder real shot picture

the product looks atmospheric., advanced technology, complete specifications and models。

Carbon steel rotary feeder

Note: All the pictures in this article were taken by hyde manufacturer.。

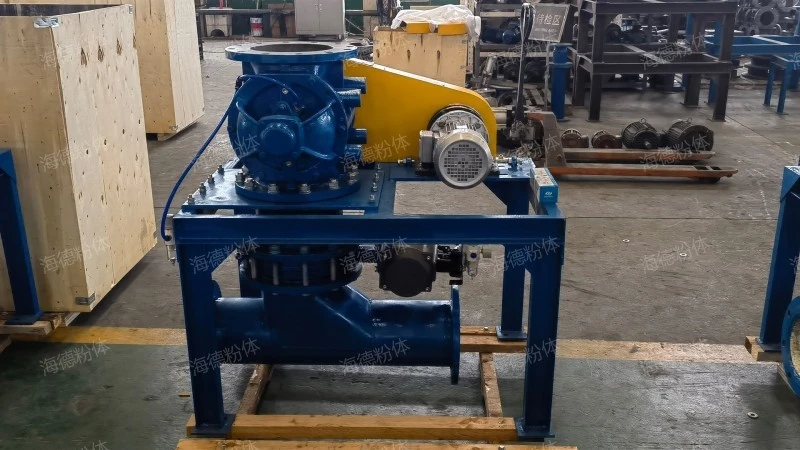

3、Carbon steel rotary feeder HD real shot

Speak directly with facts on the spot。

Carbon steel rotary feeder

As you can see from the live video.，hyde powder the main features are strong overload capacity, high wear resistance, low noise, easy maintenance and flexible configuration。

4、Carbon steel rotary feeder structure composition

The Carbon steel rotary feeder structure is introduced as follows:

1. sealing element

Seals are used to ensure the sealing performance of the Carbon steel rotary feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

2. impeller

Impeller is the key part of the Carbon steel rotary feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

3. Rotor and shell

The rotor is the core component of the Carbon steel rotary feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

4. Equalizing exhaust port

The side of the Carbon steel rotary feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

5. Motor and transmission device

The motor provides power for the Carbon steel rotary feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

Carbon steel rotary feeder

5、Carbon steel rotary feeder function

Carbon steel rotary feedermultifunctional, with functions such as continuously and uniformly feed or discharge., blowing-in, prevent gas or dust leakage, ensure air tightness of the system and prevent gas or dust leakage，the advantage is Using the principle of planetary rotation, the input and output shafts are on the same axis, which has compact structure, small volume and light weight.、The design of special sealing structure enables the Carbon steel rotary feeder to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.、It is suitable for hard and abrasive powder, and the replaceable bushing is arranged in the casing to improve the service life and facilitate maintenance and replacement.、With automatic locking mechanism and electric push rod with two-way insurance system, the work is reliable, stable and flexible.、According to users' needs, special motors, such as explosion-proof, frequency modulation, speed regulation and marine motors, are configured to meet users' special requirements. The material of the blade can also be specially processed according to the needs of users.，it is an ideal choice for customers to buy Carbon steel rotary feeder。

Carbon steel rotary feeder

Carbon steel rotary feederUsing the principle of planetary rotation, the input and output shafts are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel, small in size and light in weight.、The design of special sealing structure enables the Carbon steel rotary feeder to maintain high sealing performance during transportation and reduce material leakage and gas reflux.、Low impact inertia force, suitable for frequent starting and reverse rotation.、Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.、By adjusting the parameters such as Carbon steel rotary feeder speed or blade angle, the conveying capacity of materials can be flexibly adjusted to meet different technological requirements.，in the course of work,The driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.。
