Introduction to HDFB100 material sealing pump, introduction to Material seal pump function advantages and characteristics

HDFB100 material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which belongs to the category of low-pressure dilute phase conveying, and mainly uses the ejector effect of high-speed airflow to convey powder materials.。

1、Brief introduction of HDFB100 material sealing pump

HDFB100 material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which uses the ejector effect of high-speed airflow to convey powder materials.，the product looks atmospheric.，Widely used inConveying of powdery materials,Dust control,Conveying of powdery materials,Waste disposal,Long-distance or complex terrain material transportation and so on，Simple operation,Wear is small,Reliable operation,be of simple construction,Transport stability，is a kind of high quality and low price HDFB100 material sealing pump。

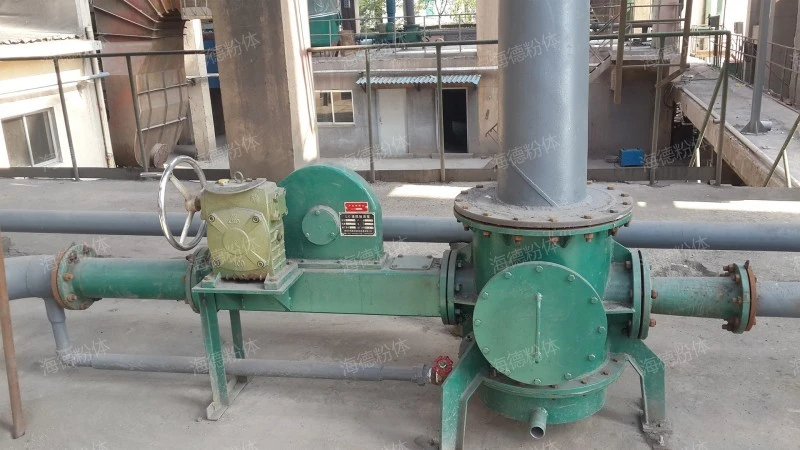

HDFB100 material sealing pump

2、Structural advantages of HDFB100 material sealing pump

The HDFB100 material sealing pump has the following structure

1. Bottom vaporization device

The bottom vaporizing device is an optional component in the HDFB100 material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

2. Cylindrical pump body

The cylindrical pump body is the main part of the HDFB100 material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

3. Nozzle adjusting device

The nozzle adjusting device is used to adjust the air outlet volume and air outlet angle of the nozzle to adapt to different conveying requirements and powder characteristics. By adjusting the nozzle adjusting device, the conveying performance of the HDFB100 material sealing pump can be optimized and the conveying efficiency and stability can be improved.

4. injector

Nozzle is one of the key parts of the HDFB100 material sealing pump, which is responsible for generating high-speed airflow and ejecting powder materials for transportation. The design and manufacturing accuracy of the nozzle have an important influence on the performance of the HDFB100 material sealing pump.

5. sealing device

The sealing device is an important part in the HDFB100 material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

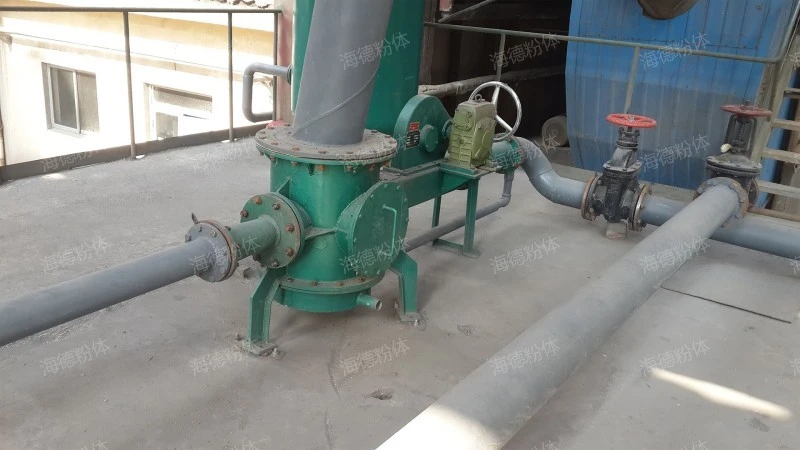

HDFB100 material sealing pump

3、HDFB100 material sealing pump performance advantage

HDFB100 material sealing pumps have the following advantages.

1. regulate automatically

It can automatically adjust the output to achieve good ash conveying effect.

2. Continuous conveying

It can be transported continuously, and the output of equipment can be automatically adjusted to achieve good ash conveying effect.

3. Strong adaptability and flexible layout

Pipes can be arranged horizontally, vertically and obliquely to adapt to various complicated transportation scenes.

4. Simple structure and convenient operation and maintenance.

The design is relatively simple, and there are no complicated mechanical structures and vulnerable parts, so it is very convenient to operate. The maintenance amount is small, and the use cost is reduced.

5. Completely sealed and pollution-free.

The fully sealed design also prevents foreign substances from entering the tube and ensures the purity and quality of the powder.

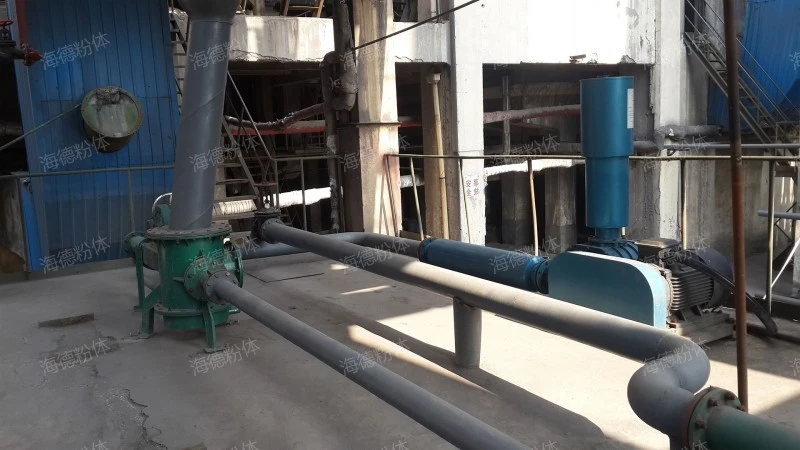

HDFB100 material sealing pump

4、Introduction of HDFB100 material sealing pump characteristics

HDFB100 material sealing pumpfeatures include easy to operate, Long service life, omniseal, Can be continuously conveyed. and Pollution-free transportation，Using low-pressure conveying mode, the pressure of ash conveying medium is low, so the equipment pipes and valves are not easy to wear and prolong the service life.、Can be flexibly arranged and configured according to the specific situation of the system.、By adopting the low positive pressure and fully sealed transportation mode, foreign substances can not enter the pipe and will not change the properties of the required materials.、Powder can be continuously conveyed, and the conveying efficiency is improved. The equipment has the function of automatically adjusting the output, which can adjust the conveying quantity according to the actual demand and achieve good ash conveying effect.、It can be transported continuously, and the output of equipment can be automatically adjusted to achieve good ash conveying effect.，the product looks beautiful.，is designed by hyde powder with advanced technology。

HDFB100 material sealing pump

5、HDFB100 material sealing pump video detail

Speak directly with facts on the spot。

HDFB100 material sealing pump

As you can see from the live video.，hyde Using the action of air jet, the air drives the ash particles to send the ash to ash storage. The energy when the HDFB100 material sealing pump works comes from two parts: one part is the kinetic energy of the fan, and the other part is the potential energy of the material column. When the material column is high, the potential energy is high and the pressure is high, the conveying capacity is correspondingly large, and vice versa.。

6、HDFB100 material sealing pump structure composition

The HDFB100 material sealing pump structure is introduced as follows:

1. Bottom vaporization device

The bottom vaporizing device is an optional component in the HDFB100 material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

2. injector

Nozzle is one of the key parts of the HDFB100 material sealing pump, which is responsible for generating high-speed airflow and ejecting powder materials for transportation. The design and manufacturing accuracy of the nozzle have an important influence on the performance of the HDFB100 material sealing pump.

3. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the HDFB100 material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

4. Cylindrical pump body

The cylindrical pump body is the main part of the HDFB100 material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

5. Feed port and discharge port

The inlet is used to add powder materials into the HDFB100 material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

HDFB100 material sealing pump

HDFB100 material sealing pumpIt is an advanced pneumatic conveying equipment for powder.，The structural design is simple, novel and special.，the main structure includes injector, Nozzle adjusting device, sealing device, Nozzle adjusting device, Bottom vaporization device and so on。
