What is a Continuous conveying material sealing pump? Introduction to the advantages and characteristics of Material seal pump functions

Continuous conveying material sealing pumpIt is a device for conveying powdery materials by using the ejector effect of high-speed airflow.。

1、Brief introduction of Continuous conveying material sealing pump

Continuous conveying material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which belongs to the category of low-pressure dilute phase conveying, and mainly uses the ejector effect of high-speed airflow to convey powder materials.，is a Continuous conveying material sealing pump，widely used in Thermoelectric industry, environmental protection, electricity industry, Cement industry, food and other fields。

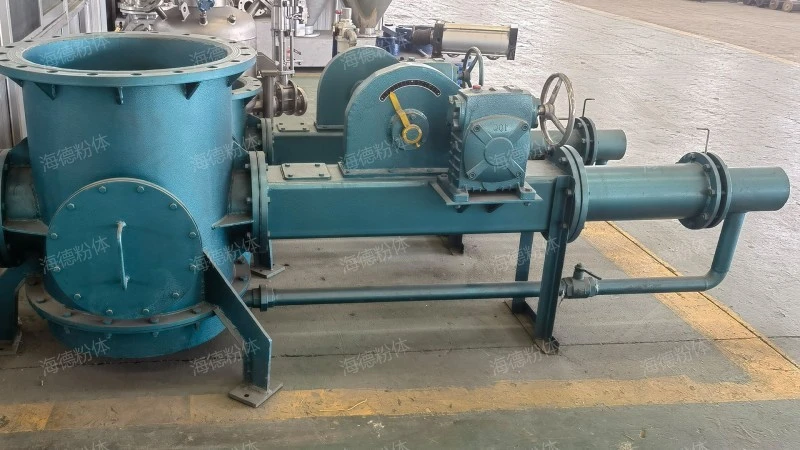

Continuous conveying material sealing pump

2、Continuous conveying material sealing pump use

The purpose of Continuous conveying material sealing pump is introduced as follows:

1. Waste disposal

Continuous conveying material sealing pumps are also widely used in the field of waste treatment. For example, it can transport fly ash and other wastes to designated disposal sites, or be used in recycling ways such as the production of environmentally friendly bricks. This not only helps to reduce the accumulation and pollution of waste, but also realizes the reuse of resources.

2. System supporting use

The Continuous conveying material sealing pump can also be used as an integrated part of a large pneumatic conveying system or a powder processing system. According to customers' specific needs and scenarios, the Continuous conveying material sealing pump can be customized and optimized to achieve a more efficient and reliable powder conveying solution.

3. Conveying of powdery materials

The Continuous conveying material sealing pump is mainly used for conveying all kinds of dry and loose powder materials. These materials include but are not limited to fly ash, alumina powder, limestone powder, cement powder, dry kiln ash, etc. Through the efficient transportation of the Continuous conveying material sealing pump, these powder materials can be quickly transferred from one place to another to meet the production or processing needs.

4. Long-distance or complex terrain material transportation

Continuous conveying material sealing pumps are suitable for long-distance or complex terrain material transportation, such as mountains, hills, narrow urban spaces, etc., because they have the characteristics of Simple operation.

5. Environmental protection and dust control

In the field of environmental protection, Continuous conveying material sealing pumps can be used for dust collection and transportation, which helps to reduce dust pollution and improve the working environment.

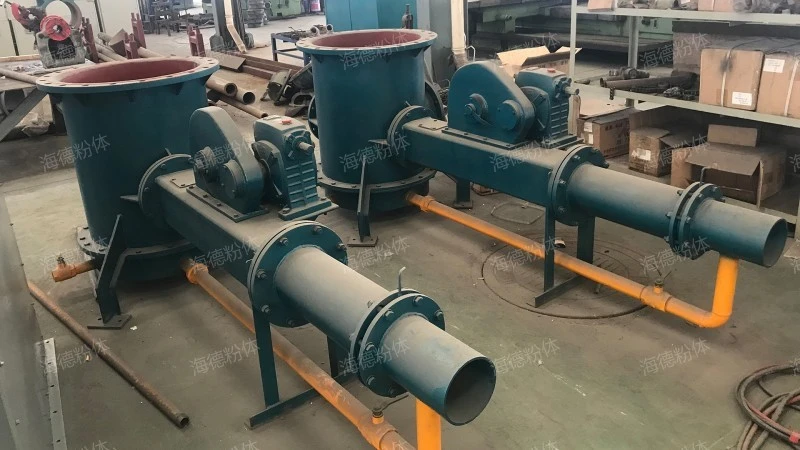

Continuous conveying material sealing pump

3、Introduction of advantages of Continuous conveying material sealing pump

The advantages of Continuous conveying material sealing pump are as follows:

1. regulate automatically

It can automatically adjust the output to achieve good ash conveying effect.

2. Simple structure and convenient operation and maintenance.

The design is relatively simple, and there are no complicated mechanical structures and vulnerable parts, so it is very convenient to operate. The maintenance amount is small, and the use cost is reduced.

3. Low pressure transportation, little wear and tear.

The Continuous conveying material sealing pump adopts low-pressure conveying mode, and the pressure of ash conveying medium is low, so the equipment pipes and valves are not easy to wear and prolong the service life.

4. Continuous conveying

It can be continuously transported, and the transportation efficiency is improved.

5. Strong adaptability and flexible layout

Pipes can be arranged horizontally, vertically and obliquely to adapt to various complicated transportation scenes.

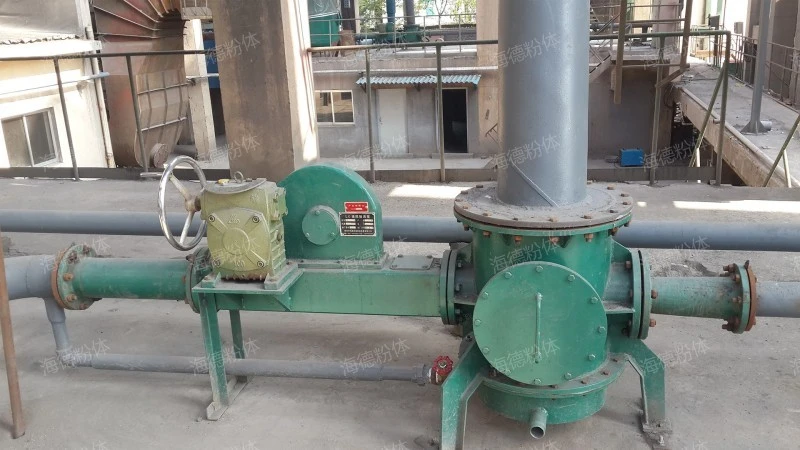

Continuous conveying material sealing pump

4、Continuous conveying material sealing pump structure composition

The Continuous conveying material sealing pump has the following structure

1. sealing device

The sealing device is an important part in the Continuous conveying material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

2. Nozzle adjusting device

The nozzle adjusting device is used to adjust the air outlet volume and air outlet angle of the nozzle to adapt to different conveying requirements and powder characteristics. By adjusting the nozzle adjusting device, the conveying performance of the Continuous conveying material sealing pump can be optimized and the conveying efficiency and stability can be improved.

3. injector

Nozzle is one of the key parts of the Continuous conveying material sealing pump, which is responsible for generating high-speed airflow and ejecting powder materials for transportation. The design and manufacturing accuracy of the nozzle have an important influence on the performance of the Continuous conveying material sealing pump.

4. Cylindrical pump body

The cylindrical pump body is the main part of the Continuous conveying material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

5. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the Continuous conveying material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

Continuous conveying material sealing pump

5、Continuous conveying material sealing pump structure

The Continuous conveying material sealing pump structure is introduced as follows:

1. Bottom vaporization device

The bottom vaporizing device is an optional component in the Continuous conveying material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

2. Feed port and discharge port

The inlet is used to add powder materials into the Continuous conveying material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

3. Feed port and discharge port

The inlet is used to add powder materials into the Continuous conveying material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

4. Nozzle adjusting device

The nozzle adjusting device is used to adjust the air outlet volume and air outlet angle of the nozzle to adapt to different conveying requirements and powder characteristics. By adjusting the nozzle adjusting device, the conveying performance of the Continuous conveying material sealing pump can be optimized and the conveying efficiency and stability can be improved.

5. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the Continuous conveying material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

Continuous conveying material sealing pump

6、hyde powder company service

Perfect after-sales service is hyde's business policy. Our company has a professional after-sales service team, and all customer service personnel and maintenance technicians need pre-job training before they can take up their posts. Before the sale, there are customer service personnel to cooperate with customers to do a good job in product selection, and at the same time provide detailed information such as Continuous conveying material sealing pump price and technical parameters; During the sale, sign a formal purchase contract with the customer and do a good job in product inspection to prevent leakage and delay the start-up time of the customer; After sale, we will provide customers with free transportation, installation and post-maintenance work. At the same time, we will pay regular return visits to the use of products. Once problems are found, we will send technicians to deal with them in time, and always keep the interests of customers doubled.。

hyde powder

Continuous conveying material sealing pumpIt has a wide range of uses, and is often used inRaw material transportation,Dust control,System supporting use,Conveying of powdery materials,Raw material transportation and so on，it mainly includes Supporting and connecting parts, Feed port and discharge port, Cylindrical pump body, Bottom vaporization device and injector，productThe overall structural design is simple, diverse and beautiful.。
