What is a Negative pressure pneumatic conveying material sealing pump? Material seal pump specifications, models, and parameters

Negative pressure pneumatic conveying material sealing pumpIt is a device for conveying powdery materials by using the ejector effect of high-speed airflow.，the product looks atmospheric.，is a popular Negative pressure pneumatic conveying material sealing pump，is based on hyde is a Negative pressure pneumatic conveying material sealing pump newly developed by hyde。

1、Brief introduction of Negative pressure pneumatic conveying material sealing pump

Negative pressure pneumatic conveying material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which uses the ejector effect of high-speed airflow to convey powder materials.，the product looks atmospheric.，multifunctional, with functions such as Raw material transportation, Conveying of powdery materials, Waste disposal, Dust control and Raw material transportation，The overall structural design is simple, diverse and beautiful.，it is mainly composed of Supporting and connecting parts, injector, Bottom vaporization device, Feed port and discharge port and Cylindrical pump body，is an advanced Negative pressure pneumatic conveying material sealing pump developed by our company in combination with the actual situation of the industry。

Negative pressure pneumatic conveying material sealing pump

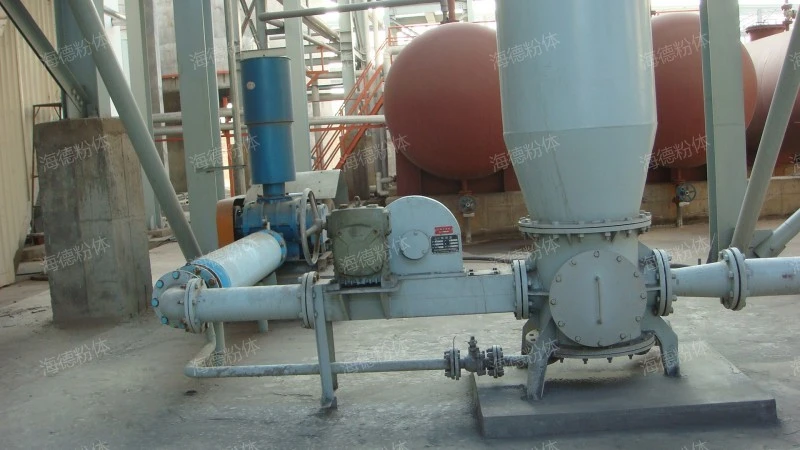

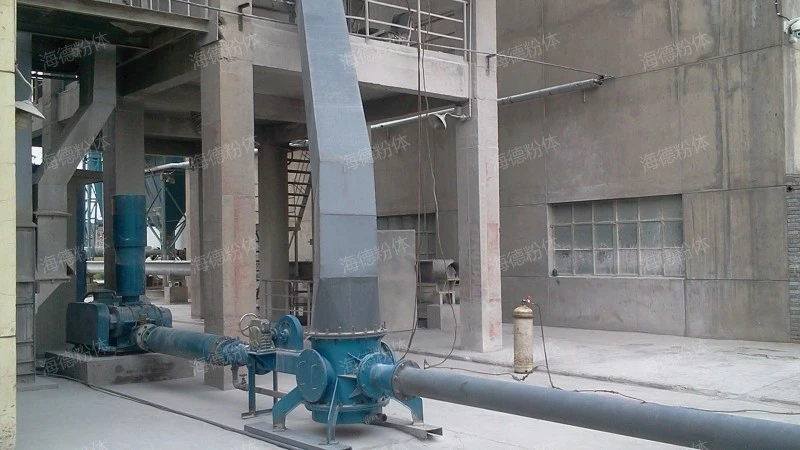

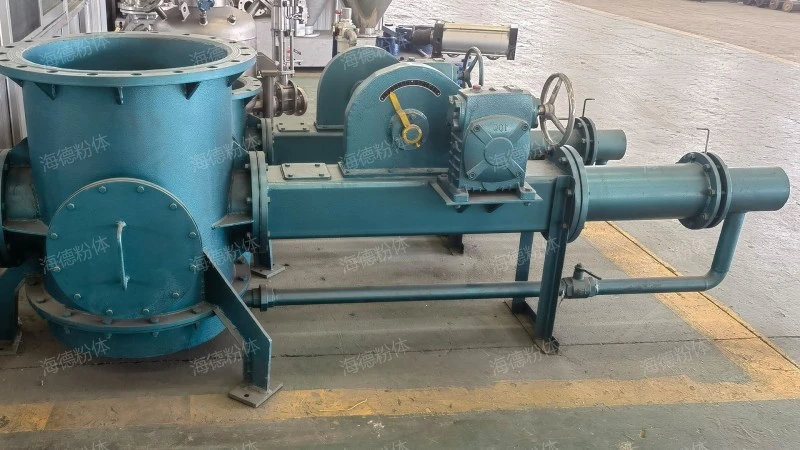

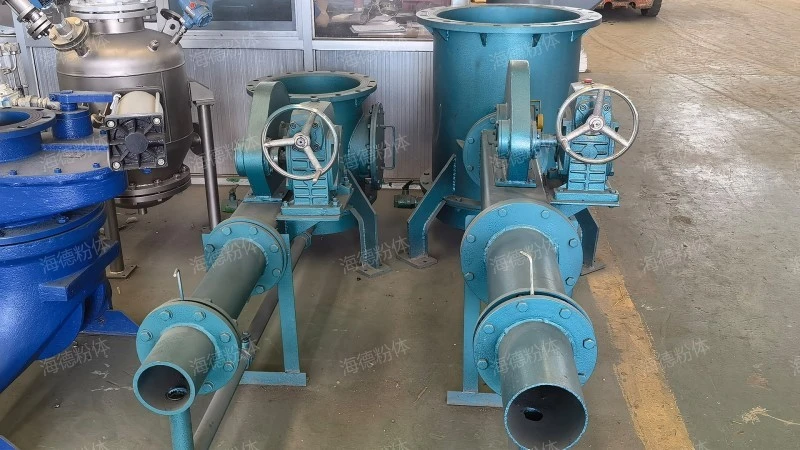

2、Negative pressure pneumatic conveying material sealing pump picture

High-definition pictures of reliable Negative pressure pneumatic conveying material sealing pump at a glance。

Negative pressure pneumatic conveying material sealing pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

3、Structural advantages of Negative pressure pneumatic conveying material sealing pump

The Negative pressure pneumatic conveying material sealing pump has the following structure

1. sealing device

The sealing device is an important part in the Negative pressure pneumatic conveying material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

2. Supporting and connecting parts

The supporting and connecting parts are used to support and connect various parts of the Negative pressure pneumatic conveying material sealing pump to ensure the stability and integrity of the pump body. The design and manufacture of these components need to consider factors such as strength, stiffness and stability.

3. Feed port and discharge port

The inlet is used to add powder materials into the Negative pressure pneumatic conveying material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

4. Bottom vaporization device

The bottom vaporizing device is an optional component in the Negative pressure pneumatic conveying material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

5. Nozzle adjusting device

The nozzle adjusting device is used to adjust the air outlet volume and air outlet angle of the nozzle to adapt to different conveying requirements and powder characteristics. By adjusting the nozzle adjusting device, the conveying performance of the Negative pressure pneumatic conveying material sealing pump can be optimized and the conveying efficiency and stability can be improved.

Negative pressure pneumatic conveying material sealing pump

4、Functional advantages of Negative pressure pneumatic conveying material sealing pump

Negative pressure pneumatic conveying material sealing pumps have the following advantages.

1. regulate automatically

It can automatically adjust the output to achieve good ash conveying effect.

2. Continuous conveying and automatic adjustment

It can be transported continuously, and the output of equipment can be automatically adjusted to achieve good ash conveying effect.

3. Low pressure transportation, little wear and tear.

The pressure of ash conveying medium is low, the valve of equipment pipeline is not easy to wear and has long service life.

4. energy saving and environmental protection

Compared with the traditional mechanical conveying mode, the pneumatic conveying mode has higher energy efficiency ratio and lower energy consumption.

5. Completely sealed and pollution-free.

By adopting low positive pressure and fully sealed transportation mode, foreign substances cannot enter the pipe, and the properties of the required materials will not be changed.

Negative pressure pneumatic conveying material sealing pump

5、Negative pressure pneumatic conveying material sealing pump characteristics

Negative pressure pneumatic conveying material sealing pumpfeatures include Can be continuously conveyed., Convenient and flexible layout, Transport stability, easy to operate and omniseal，it is widely used inglass,electricity industry,building materials,Alumina powder conveying,glass and other industries。

Negative pressure pneumatic conveying material sealing pump

6、Negative pressure pneumatic conveying material sealing pump price advantage

The Negative pressure pneumatic conveying material sealing pump price is introduced as follows:

1. model

There are many specifications and models of Negative pressure pneumatic conveying material sealing pump in the market now. Under normal circumstances, the price of large-sized Negative pressure pneumatic conveying material sealing pump is definitely higher than that of small-sized Negative pressure pneumatic conveying material sealing pump.

2. Quality advantages and disadvantages

The condition of the product itself has a great influence on its price, and the cost of the product with excellent quality is higher, which will lead to the increase of the selling price of the product. Therefore, this is an important factor that causes the price fluctuation and change of the Negative pressure pneumatic conveying material sealing pump.

3. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

4. region

hyde powder has a geographical advantage, where the transportation is developed, the product transportation cost is low, and the price and consumption level are also low, which provides a good sales environment for Negative pressure pneumatic conveying material sealing pump.

5. Configuration difference

The difference in Negative pressure pneumatic conveying material sealing pump configuration will affect the product cost price. The higher the configuration, the higher the product cost price and the higher the overall selling price of the product. It is suggested that customers should compare whether the configuration is in line with the quotation when purchasing products, and compare more companies.

Negative pressure pneumatic conveying material sealing pump

Negative pressure pneumatic conveying material sealing pumpit has the functions of Dust control, System supporting use, Conveying of powdery materials, Long-distance or complex terrain material transportation and Waste disposal，at work,Based on the ejector effect of high-speed airflow, the mixing and acceleration of airflow and powder, the formation of material column and pressure balance, the isolation and sealing of positive and negative pressure, and the automatic adjustment and adaptation.。
