What is a B-type star unloader? Introduction to the principle of unloader structure

B-type star unloaderis an efficient and flexible material conveying equipment.。The following is to introduce the B-type star unloader:

1、Brief introduction of B-type star unloader

B-type star unloaderis a common material conveying equipment.，multifunctional, with functions such as material handling, prevent gas or dust leakage, blowing-in, equipment feeding and ensure air tightness of the system，can be customized according to user's needs.。

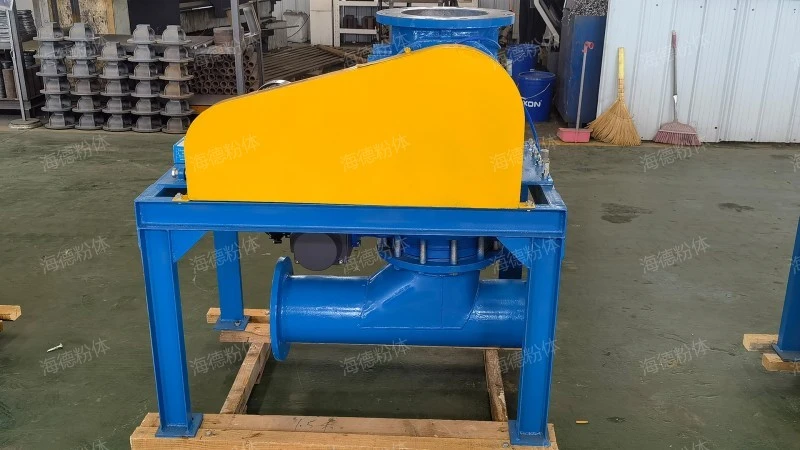

B-type star unloader

2、B-type star unloader structure

The B-type star unloader structure is introduced as follows:

1. impeller

Impeller is the key part of the B-type star unloader to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. Rotor and shell

The rotor is the core component of the B-type star unloader, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

3. Equalizing exhaust port

The side of the B-type star unloader body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

4. sealing element

Seals are used to ensure the sealing performance of the B-type star unloader in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

5. Motor and transmission device

The motor provides power for the B-type star unloader, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

B-type star unloader

3、B-type star unloader function

B-type star unloaderit has the functions of continuously and uniformly feed or discharge., dust removal equipment discharges dust., material handling, equipment feeding and blowing-in，the advantage is The key components inside the equipment, such as impeller and bushing, are made of excellent materials and have high wear resistance, which can meet the needs of long-term and high-strength material transportation.、Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.、Using the principle of planetary rotation, the input and output shafts are on the same axis, which has compact structure, small volume and light weight.、By adjusting the parameters such as B-type star unloader speed or blade angle, the conveying capacity of materials can be flexibly adjusted to meet different technological requirements.、It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment.，the product looks beautiful.，at the start of the operation,The driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.，handsome appearance,strong reliability,easy maintenance,favorable price,good sealing performance。

B-type star unloader

4、B-type star unloader characteristics

B-type star unloaderfeatures include run smoothly, low noise, low noise, compact structure and strong overload capacity。

B-type star unloader

5、Introduction of advantages of B-type star unloader

The advantages of B-type star unloader are as follows:

1. Flexible adjustment

Some B-type star unloaders are equipped with variable frequency governors, which can adjust the rotating speed of the impeller according to the actual demand, thus flexibly controlling the conveying quantity of materials.

2. Multi-material handling

It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.

3. Smooth operation and low noise.

Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.

4. Compact structure and beautiful appearance.

The B-type star unloader adopts the principle of planetary rotation, and the input and output shafts are on the same axis, with compact structure, small volume and light weight.

5. Good sealing performance

Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.

B-type star unloader

6、How much is the B-type star unloader?

The B-type star unloader price is introduced as follows:

1. Parameter size

Different product models will also affect the price changes. Different specifications and models will lead to different product prices.

2. Manufacturer's strength

Our company's expected profit value of B-type star unloader is relatively low, and adopts the sales policy of small profits but quick turnover, so the price positioning of B-type star unloader is relatively low.

3. regional advantages

hyde powder address:jinan, Shandong province, the transportation here is developed and convenient, and the products can be transported to the designated place in a short time, which saves customers a sum of transportation expenses.

4. Product technology

Different manufacturers have different advanced technologies, different production processes and different performances, and the price difference is naturally quite large.

5. brand

Different brands of products in the same series have more or less differences in product prices, and different brands of B-type star unloader have more or less differences in price.

B-type star unloader

B-type star unloaderwidely used inmetallurgy,chemical raw material,building materials,chemical industry,building materials cement and other industries，multifunctional, with functions such as prevent gas or dust leakage, ensure air tightness of the system, material handling, continuously and uniformly feed or discharge. and dust removal equipment discharges dust.。
