Introduction to Y-type unloader, unloader advantages, characteristics and principles

Y-type unloaderis an efficient and flexible material conveying equipment.，Commonly used indust removal equipment discharges dust.,blowing-in,ensure air tightness of the system,continuously and uniformly feed or discharge.,prevent gas or dust leakage and so on，the advantage is Due to the use of high-quality materials and advanced technology, the service life of the Y-type unloader is longer, reducing the frequency of replacement and maintenance.、Low impact inertia force, suitable for frequent starting and reverse rotation.、Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.、The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.、The structural design makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.。

1、Brief introduction of Y-type unloader

Y-type unloaderas an important bulk material conveying equipment，it has the functions of ensure air tightness of the system, material handling, ensure air tightness of the system, dust removal equipment discharges dust. and blowing-in，super quality and competitive price。

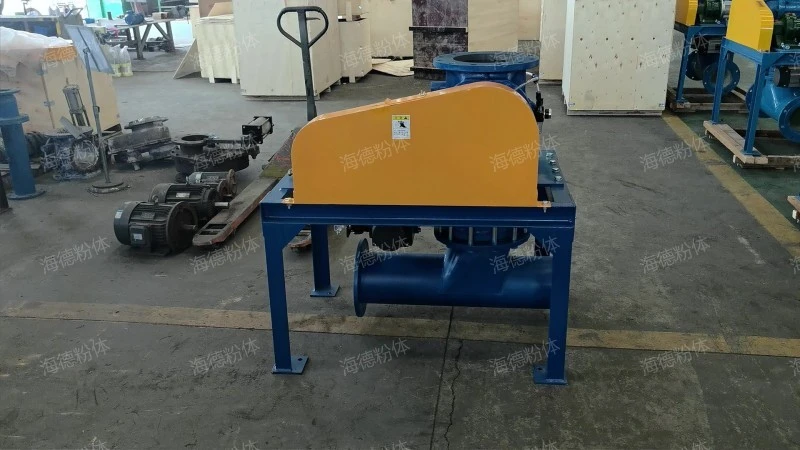

Y-type unloader

2、Y-type unloader characteristics

Y-type unloaderit has the characteristics of high wear resistance, reliable work, run smoothly, low noise and strong reliability，the principle is simple.Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Y-type unloader is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.，multifunctional, with functions such as prevent gas or dust leakage, equipment feeding, continuously and uniformly feed or discharge., dust removal equipment discharges dust. and ensure air tightness of the system。

Y-type unloader

3、Y-type unloader performance advantage

The advantages of Y-type unloader are as follows:

1. Smooth operation and low noise.

Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.

2. Compact and beautiful

By adopting the principle of planetary rotation, the input and output shafts of the Y-type unloader are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel in shape, small in size and light in weight.

3. High wear resistance

It is suitable for hard and abrasive powder, and the replaceable bushing is arranged in the casing to improve the service life and facilitate maintenance and replacement.

4. Anti-leakage design

The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.

5. Strong overload capacity

Low impact inertia force, suitable for frequent starting and reverse rotation.

Y-type unloader

4、Y-type unloader structure

The Y-type unloader has the following structure

1. Equalizing exhaust port

The side of the Y-type unloader body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

2. impeller

Impeller is the key part of the Y-type unloader to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

3. Motor and transmission device

The motor provides power for the Y-type unloader, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

4. sealing element

Seals are used to ensure the sealing performance of the Y-type unloader in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

5. Rotor and shell

The rotor is the core component of the Y-type unloader, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Y-type unloader

5、How much is the Y-type unloader?

The Y-type unloader price is introduced as follows:

1. product configuration

There is a direct connection between configuration and specifications. Generally speaking, with different specifications, its configuration scheme will be different, and the selection of products' materials and parts will be different, so the sales price of products will be different. It is not difficult to see that the configuration and price of Y-type unloader are closely related. hyde powder has comprehensively measured the configuration and sales price of products when designing Y-type unloader, which not only ensures that the functions of products can meet the actual needs of customers, but also can be in terms of price.

2. Product technology

The more advanced the technology, the higher the price will be, otherwise the product price will be low, and customers must pay attention to whether their own technology meets the production requirements when purchasing products.

3. Low cost of raw materials

Product manufacturers are different, and the cost spent by each manufacturer in producing products is definitely different. The higher the cost of producing products, the higher the price of products set by manufacturers. On the contrary, the Y-type unloader price is low.

4. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

5. company strength

There are many Y-type unloader manufacturers on the market. Different manufacturers spend different costs, such as material costs, labor costs, manufacturing costs, etc., and their products are quoted differently.

Y-type unloader

6、Company discount

Y-type unloader is a new type of unloader introduced by Shandong Haide Fenti Engineering Co., Ltd. manufacturer, which has a wide range of applications, complete structural design and high working efficiency. It is an ideal equipment for energy mining industry and other industries. Now consult hydeY-type unloader, you can enjoy the discount, and there are many activities for you, such as full reduction and full reduction。

hyde powder

Y-type unloaderwidely used in chemical raw material, building materials cement, mine, building materials, plastic metallurgy and other fields，the main features are favorable price, low noise, compact structure, flexible adjustment and strong overload capacity。
