Introduction to DN100 rotary discharger and unloader advantages and features

DN100 rotary dischargeris a device for discharging materials, which discharges materials from containers by specific mechanical or pneumatic means.，is based on hyde is an advanced DN100 rotary discharger developed by our company in combination with the actual situation of the industry。

1、Brief introduction of DN100 rotary discharger

DN100 rotary dischargeris an efficient, stable and reliable material conveying equipment.，in the course of work,Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the DN100 rotary discharger is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.，the main structure includes main valve (including shell, end cover, impeller, sealing structure, etc.), motor reducing gear, motor and transmission device, protective devices (such as sprockets, sprocket covers, etc.) and vent，This productThe overall structural design is simple and novel.，Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.、With overload protection function, it can automatically stop the machine in case of abnormal situation to avoid equipment damage.、The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.、Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.、Can evenly and continuously feed materials into the clinker pipe to ensure the stability and continuity of material transportation.，Cheap and high quality。

DN100 rotary discharger

2、Working principle of DN100 rotary discharger

DN100 rotary dischargerat runtime,The motor reducer drives the impeller to rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the impellers. With the rotation of the impellers, the materials are transported to the lower part and discharged. At the same time, the exhaust port exhausts the high-pressure gas generated by the rotation of the impeller, which reduces the phenomenon of gas ejection and ensures the continuity and stability of material transportation.，it is widely used inmetallurgy,grain processing,plastic metallurgy,energy mining industry,dock and other industries，multifunctional, with functions such as material handling, dust removal equipment discharges dust., equipment feeding, ensure air tightness of the system and blowing-in，the product looks atmospheric.，has been favored by more and more customers.。

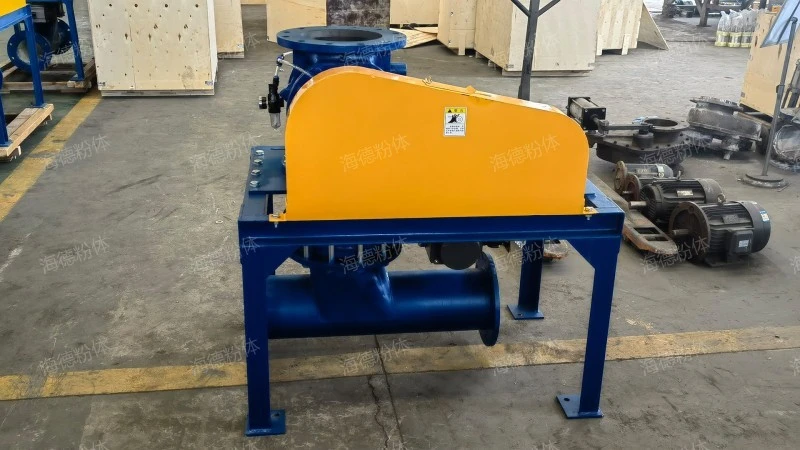

DN100 rotary discharger

3、Video analysis of DN100 rotary discharger

The following is the live video of DN100 rotary discharger designed and produced by hyde powder for users, from which we can see the the advantage is The design of special sealing structure enables the DN100 rotary discharger to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.、The structural design makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.、Low impact inertia force, suitable for frequent starting and reverse rotation.、By adopting the principle of planetary rotation, the input and output shafts are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel in shape, small in volume and light in weight.、It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment. of hyde powderProduction and processing的DN100 rotary discharger.。

DN100 rotary discharger

As you can see from the live video.，hyde it has the characteristics of flexible adjustment, easy maintenance, strong reliability, high wear resistance and low noise。

4、DN100 rotary discharger function

DN100 rotary dischargerit has the functions of continuously and uniformly feed or discharge., prevent gas or dust leakage, material handling, equipment feeding and ensure air tightness of the system，It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.、Due to the use of high-quality materials and advanced technology, the service life of the DN100 rotary discharger is longer, reducing the frequency of replacement and maintenance.、The transmission is stable and the noise is low, which provides good conditions for working environment.、The transmission is stable and the noise is low, which provides good conditions for working environment.、The design of special sealing structure enables the DN100 rotary discharger to maintain high sealing performance during transportation and reduce material leakage and gas reflux.，the main features are high wear resistance, compact structure, reliable work, run smoothly and strong reliability，generally, it is composed of equalizing exhaust port, motor and transmission device, impeller, vent, motor reducing gear and other major components，as an important bulk material conveying equipment。

DN100 rotary discharger

5、Functional advantages of DN100 rotary discharger

DN100 rotary dischargers have the following advantages.

1. High wear resistance

Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.

2. Strong overload capacity

Low impact inertia force, suitable for frequent starting and reverse rotation.

3. Automatic locking mechanism

The DN100 rotary discharger has an automatic locking mechanism and the electric push rod has a two-way safety system, which makes the work reliable, stable and flexible.

4. Flexible configuration

According to users' needs, special motors, such as explosion-proof, frequency modulation, speed regulation and marine motors, are configured to meet users' special requirements. The material of blades can also be specially processed according to the needs of users, such as high temperature resistance, corrosion resistance, stainless steel, flexible blades, explosion-proof impellers and so on.

5. Compact and beautiful

By adopting the principle of planetary rotation, the input and output shafts of the DN100 rotary discharger are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel in shape, small in size and light in weight.

DN100 rotary discharger

6、hyde delivery site

Speak directly with facts on the spot。

DN100 rotary discharger

As you can see from the live video.hyde powder multifunctional, with functions such as continuously and uniformly feed or discharge., prevent gas or dust leakage, dust removal equipment discharges dust., blowing-in and material handling。

DN100 rotary dischargeris widely used in powder engineering, pneumatic conveying and dust removal system.，Widely used inensure air tightness of the system,equipment feeding,dust removal equipment discharges dust.,prevent gas or dust leakage,material handling and so on。
