Introduction of Continuous pneumatic conveying equipment
Continuous pneumatic conveying equipmentis an efficient and environment-friendly way to transport materials by using the energy of airflow.，It has the functions of Process assistance, material handling, Heating, cooling and drying, Multi-point transportation and Reduce pollution，is a kind of high quality and low price Continuous pneumatic conveying equipment，In the process of conveying, various technological operations can be carried out at the same time, such as grade.、Can be fed from one place to many places for decentralized transportation.、Can be charged at one place, and then discharged at multiple places, and realize remote operation.、In the process of conveying, various technological operations can be carried out at the same time, such as dry.、The operation mode is flexible and changeable, and it can run continuously or regularly.，meet the needs of material transportation，is developed and improved by hyde powder。
1、Brief introduction of Continuous pneumatic conveying equipment
Continuous pneumatic conveying equipmentis a material conveying device that uses the pressure of gas to convey powder materials.，at runtime,Mainly based on aerodynamic force, compressed air or other gases generate airflow, so that material particles are suspended in the airflow or transported in groups along the pipeline.。
Continuous pneumatic conveying equipment
2、Continuous pneumatic conveying equipment structure composition
The Continuous pneumatic conveying equipment has the following structure
- Feeding device
- dust pelletizing system
- control system
- Conveying pipeline system
- Bunker system
The feeding device is responsible for feeding materials evenly and stably into the conveying pipeline. It is usually installed at the beginning of the system, and uses the negative pressure or positive pressure formed by the air source device to mix materials with air in a certain proportion and send them into the pipeline. Common feeding devices include rotary valves, screw conveyors, rotary feeders, screw pumps, silo pumps and Venturi nozzles. The selection of feeding device should be considered comprehensively according to the characteristics of materials and transportation requirements.
Dust removal system is very important for the environmental protection performance of Continuous pneumatic conveying equipment system. It is responsible for handling the dust and waste gas generated in the transportation process to ensure that the discharge meets the requirements of environmental protection. Dust removal system usually includes dust collector, fan and discharge pipeline. According to different material characteristics and environmental protection requirements, different dust removal equipment and technical schemes can be selected.
The control system is the "brain" of the Continuous pneumatic conveying equipment system, which is responsible for monitoring and controlling the whole system. Through the control equipment such as programmable controller, the parameters such as airflow speed, feed rate and system pressure can be accurately adjusted and controlled to ensure the stable operation of the system and meet the production requirements.
The conveying pipeline is a channel for conveying materials after mixing with airflow. It is made of wear-resistant and corrosion-resistant materials to ensure that the materials will not be polluted or damaged during transportation. The diameter, shape and length of the pipeline will be designed according to the characteristics and delivery capacity of the transported materials. In addition, the pipeline system may also include some auxiliary fittings, such as valves, elbows, expansion joints, etc., for regulating air flow and pipeline connection.
The silo temporarily stores and releases materials. The silo is usually designed as a pyramid or conical structure to facilitate the storage and unloading of materials. The design of silo needs to consider the different problems of materials in the process of storage and unloading and the flow form of materials.
Continuous pneumatic conveying equipment
3、Continuous pneumatic conveying equipment performance advantage
Continuous pneumatic conveying equipments have the following advantages.
- Wide application range
- The quality of convey materials is ensure.
- High degree of automation
- Multi-point to multi-point transportation
- Easy to maintain
The Continuous pneumatic conveying equipment system can transport a variety of materials, including powdery, granular, fibrous and small block materials, and has strong adaptability. At the same time, for materials with unstable chemical properties, inert gas can also be used for transportation to ensure the stability of materials during transportation.
In the process of conveying, the Continuous pneumatic conveying equipment system can prevent the materials from being wetted, stained or mixed with other sundries, thus ensuring the quality of the conveyed materials.
The Continuous pneumatic conveying equipment system is easy to realize automatic control, and can be operated and monitored remotely through the central console, which reduces the labor cost and improves the production efficiency and management convenience.
The Continuous pneumatic conveying equipment system can realize multi-point to multi-point transportation, meet the needs of different production lines and improve the production flexibility.
The Continuous pneumatic conveying equipment system has relatively few moving parts, which makes the maintenance more convenient. At the same time, due to its structural characteristics, the system is easy to realize automatic control, which improves production efficiency and management convenience.
Continuous pneumatic conveying equipment
4、Continuous pneumatic conveying equipment function
Continuous pneumatic conveying equipmentit has the functions of Physical processing assistance, Closed conveying, Explosion-proof involves, Automatic control and Environmental protection and pollution-free，also known as airflow transportation, is a way to transport granular materials along the airflow direction in a closed pipeline by using the energy of airflow.，the main structure includes Air source system, control system, Conveying pipeline system, delivery system, dust pelletizing system and so on，Continuous pneumatic conveying equipmentThe structure is novel, special, advanced, reasonable and scientific.，it is an ideal choice for customers to buy Continuous pneumatic conveying equipment。
Continuous pneumatic conveying equipment
5、How much is the Continuous pneumatic conveying equipment?
The Continuous pneumatic conveying equipment price is introduced as follows:
- Sales model
- product function
- quality factor
- After-sales service level
- Model specification
Each manufacturer's sales model is different, and the preferential degree of products is also different. Some manufacturers adopt the mode of "thin profit and quick turnover", and the price is relatively cheap. Some manufacturers sell their products at high prices to earn high profits. When purchasing products, they must compare the prices to avoid being cheated.
The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.
Generally speaking, the higher the product quality, the higher the Continuous pneumatic conveying equipment price. A reasonable balance is made between quality and price, so that the comprehensive quality of the product can meet the customer's use standards and meet the basic needs of customers in terms of price.
Service factors always affect the sales price of products, and high-quality service will make customers have greater satisfaction and recognition. The service factors mainly include pre-sales service, in-sales service and after-sales service. For each stage of service, our company takes the price factor into account and makes a reasonable judgment between service and price, so that the Continuous pneumatic conveying equipment price and service can meet the actual needs of customers.
Specifications and models have a great influence on the price of Continuous pneumatic conveying equipment, so different specifications and models have different selling prices. Customers can reasonably select product specifications and models according to their own needs, so that products can meet their own required standards in terms of specifications and prices.
Continuous pneumatic conveying equipment

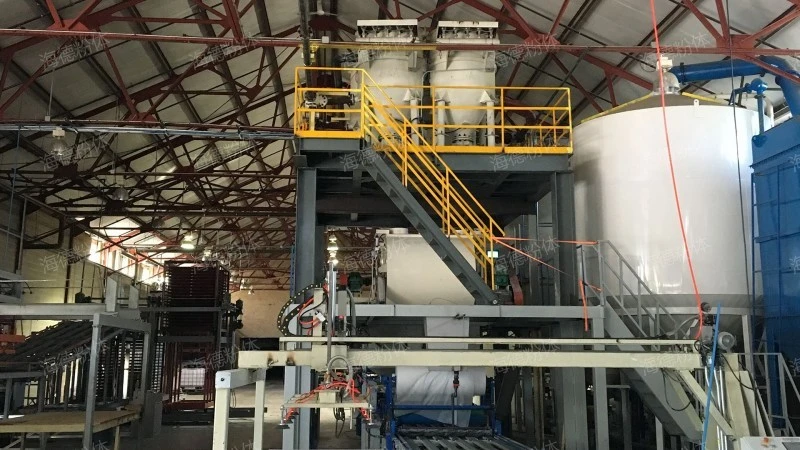

6、hyde workshop real shot
hyde powder provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the product production process and production site, and gain favorable comments and recognition from customers.。
Continuous pneumatic conveying equipment
As you can see from the live video.hyde It has the functions of Long distance transportation, Mixing and classification, Environmental protection and cleaner production, Bulk material transportation and Long distance transportation。
Continuous pneumatic conveying equipmentwidely used in machine building, chemical industry, grain processing, environmental protection, logistics and other fields，the principle is simple.Using the dynamic pressure and static pressure of air, the material particles are suspended in the airflow or transported in groups along the pipeline. The former is called material suspension transportation, and the latter is called material group transportation.。
