What is a Pulse dust removal pneumatic conveying system? Introduction to the advantages and characteristics of the Material conveying

Pulse dust removal pneumatic conveying systemmainly uses the airflow generated by the fan to transport materials along the airflow direction in the closed conveying pipeline.，the advantage is Fully enclosed transportation system, materials are transported in closed pipes.，Not affected by environment, climate and other conditions, fully sealed and pollution-free transportation.、Single-point unloading and multi-point unloading can be realized, and remote operation can be realized.、PLC intelligent control, high degree of automation and simple operation.，meet the needs of material transportation、The material is completely closed in the whole conveying process.，It can prevent the transported materials from being affected with damp, soiled or mixed with foreign matters, and it is completely sealed and pollution-free to transport.、The materials collected from several points can be sent to one place or one place to scattered points, and remote operation can be realized.。

1、Brief introduction of Pulse dust removal pneumatic conveying system

Pulse dust removal pneumatic conveying systemis a kind of material conveying equipment which uses the energy of airflow to convey granular or powdery materials along the airflow direction in a closed pipeline.，it has been widely used in logistics, chemical industry, machine building, grain processing, building material and other industries，is a popular Pulse dust removal pneumatic conveying system，in the course of work,Compressed air or other gases are passed through the air supply device to generate airflow, forming a certain airflow speed and pressure. Subsequently, the material is sent into the conveying pipeline through the feeding device, and under the action of the airflow, the material particles are suspended in the airflow or flow along the pipeline in groups. This gas-solid two-phase flow state enables materials to be transported to the target position along the pipeline. In the process of transportation, gas-solid separator (such as dust collector) is used to separate materials from air to ensure the quality of transported materials.，reliable quality。

Pulse dust removal pneumatic conveying system

2、Pulse dust removal pneumatic conveying system principle

Pulse dust removal pneumatic conveying systemat work,It mainly uses the energy of airflow to transport granular materials along the airflow direction in a closed pipeline.，it is an ideal choice for customers to buy Pulse dust removal pneumatic conveying system。

Pulse dust removal pneumatic conveying system

3、Structural advantages of Pulse dust removal pneumatic conveying system

The Pulse dust removal pneumatic conveying system structure is introduced as follows:

1. control system

The control system is the "brain" of the Pulse dust removal pneumatic conveying system system, which is responsible for monitoring and controlling the whole system. Through the control equipment such as programmable controller, the parameters such as airflow speed, feed rate and system pressure can be accurately adjusted and controlled to ensure the stable operation of the system and meet the production requirements.

2. Air source device

The air source device is the power core of the Pulse dust removal pneumatic conveying system system, which provides the airflow power needed for transportation. Common air source equipment includes roots blower, compressor, centrifugal blower and water ring vacuum pump. These devices can generate stable airflow and provide sufficient power for the transportation of materials.

3. dust pelletizing system

Dust removal system is very important for the environmental protection performance of Pulse dust removal pneumatic conveying system system. It is responsible for handling the dust and waste gas generated in the transportation process to ensure that the discharge meets the requirements of environmental protection. Dust removal system usually includes dust collector, fan and discharge pipeline. According to different material characteristics and environmental protection requirements, different dust removal equipment and technical schemes can be selected.

4. Conveying pipeline system

The conveying pipeline is a channel for conveying materials after mixing with airflow. It is made of wear-resistant and corrosion-resistant materials to ensure that the materials will not be polluted or damaged during transportation. The diameter, shape and length of the pipeline will be designed according to the characteristics and delivery capacity of the transported materials. In addition, the pipeline system may also include some auxiliary fittings, such as valves, elbows, expansion joints, etc., for regulating air flow and pipeline connection.

5. Bunker system

The silo temporarily stores and releases materials. The silo is usually designed as a pyramid or conical structure to facilitate the storage and unloading of materials. The design of silo needs to consider the different problems of materials in the process of storage and unloading and the flow form of materials.

Pulse dust removal pneumatic conveying system

4、Pulse dust removal pneumatic conveying system performance advantage

The advantages of Pulse dust removal pneumatic conveying system are as follows:

1. Strong sealing

The conveying pipeline can be flexibly configured according to the factory layout and process requirements, and can meet the conveying requirements regardless of the horizontal, vertical or inclined direction. In addition, the Pulse dust removal pneumatic conveying system system can be seamlessly connected with other production equipment to improve the overall production efficiency.

2. versatility

The Pulse dust removal pneumatic conveying system system can not only realize the transportation of materials, but also carry out various technological operations at the same time, such as mixing, crushing, grading, drying and cooling. This versatility makes Pulse dust removal pneumatic conveying systems widely used in many industries.

3. The quality of convey materials is ensure.

In the process of conveying, the Pulse dust removal pneumatic conveying system can prevent the materials from getting wet, soiled or mixed with other impurities, thus ensuring the quality of the conveyed materials. This is especially important for some industries that require high material quality.

4. Multi-point to multi-point transportation

The Pulse dust removal pneumatic conveying system system can realize multi-point to multi-point transportation, meet the needs of different production lines and improve the production flexibility.

5. Environmental protection and pollution-free

The whole process of the Pulse dust removal pneumatic conveying system system is carried out in a closed state, so the secondary pollution of materials during transportation can be avoided.

Pulse dust removal pneumatic conveying system

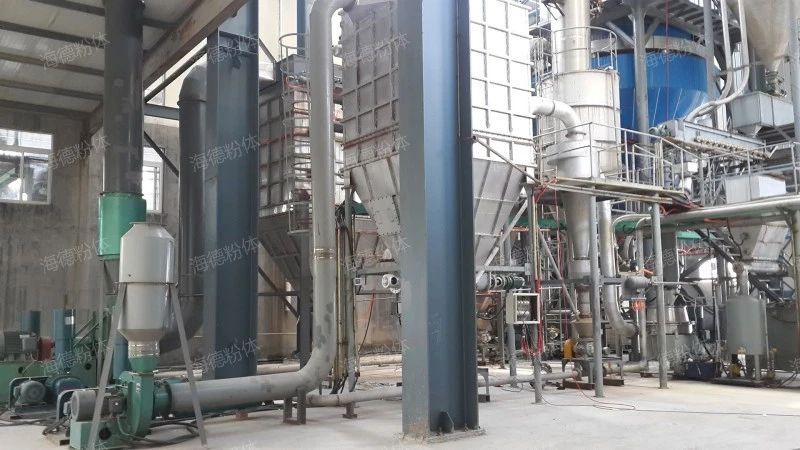

5、Pulse dust removal pneumatic conveying system working site

You can buy Pulse dust removal pneumatic conveying system according to your needs and show you Pulse dust removal pneumatic conveying system videos.。

Pulse dust removal pneumatic conveying system

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. it has the functions of Environmental protection and pollution-free, Explosion-proof involves, Automatic control, material handling and Physical processing assistance。

6、Pulse dust removal pneumatic conveying system price advantage

The Pulse dust removal pneumatic conveying system price is introduced as follows:

1. raw material

The higher the cost of materials, the higher the price will be. In the process of purchasing products, users need to make a detailed understanding of the materials selected for products.

2. product costs

hyde powder has a large production scale, strong manufacturing strength and high degree of automation in product production. In such a manufacturing environment, the cost of manufacturing Pulse dust removal pneumatic conveying system in hyde is greatly reduced.

3. product model

The same type of products, with different specifications, models and sizes, have different costs, so the quotations to customers naturally vary. Generally speaking, the larger the model, the higher the price, and the smaller the model, the lower the price.

4. region

Different provinces and regions have different consumption levels, different market positioning and different prices.

5. Product technology

The more advanced the technology, the higher the price will be, otherwise the product price will be low, and customers must pay attention to whether their own technology meets the production requirements when purchasing products.

Pulse dust removal pneumatic conveying system

Pulse dust removal pneumatic conveying systemIn the process of transportation, various technological operations can be carried out at the same time, such as physical and chemical processes such as smash.、The pipeline layout is flexible, and it can be arranged according to the specific terrain.，meet the needs of material transportation、It can feed from one place to many places for decentralized transportation and realize long-distance operation.、The whole conveying process is sealed.，Less affected by climatic and environmental conditions, fully sealed and pollution-free transportation.、In the process of conveying, various technological operations can be carried out at the same time, such as cool.，is a kind of material conveying equipment which uses air flow energy to convey granular materials in a closed pipeline.。
