Introduction to Quantitative conveying rotary feeder and Feeder structure principle

Quantitative conveying rotary feederis an excellent quantitative supply equipment designed for the purpose of supplying powder.，it is mainly composed of equalizing exhaust port, motor and transmission device, main valve (including shell, end cover, impeller, sealing structure, etc.), protective devices (such as sprockets, sprocket covers, etc.) and impeller，It can be used for prevent gas or dust leakage, dust removal equipment discharges dust., continuously and uniformly feed or discharge., blowing-in, equipment feeding, ensure air tightness of the system and so on。The following is to introduce the Quantitative conveying rotary feeder:

1、Brief introduction of Quantitative conveying rotary feeder

Quantitative conveying rotary feedermainly used for dust removal equipment, dust discharge, air supply and other equipment feeding process.，is a common Quantitative conveying rotary feeder，widely used in chemical industry, plastic metallurgy, mine, building materials, energy mining industry and other fields，the product looks beautiful.，it has the functions of continuously and uniformly feed or discharge., ensure air tightness of the system, prevent gas or dust leakage, material handling and dust removal equipment discharges dust.。

Quantitative conveying rotary feeder

2、Quantitative conveying rotary feeder function

Quantitative conveying rotary feedermultifunctional, with functions such as continuously and uniformly feed or discharge., ensure air tightness of the system, blowing-in, material handling and prevent gas or dust leakage。

Quantitative conveying rotary feeder

3、Introduction of Quantitative conveying rotary feeder characteristics

Quantitative conveying rotary feederit has the characteristics of good sealing performance, compact structure, strong overload capacity, flexible adjustment and low noise，customizable。

Quantitative conveying rotary feeder

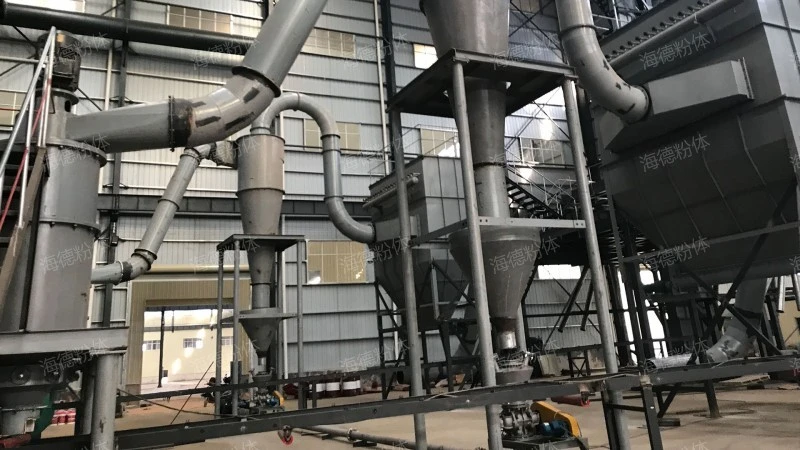

4、Quantitative conveying rotary feeder customer scene picture

hyde powder Quantitative conveying rotary feeder is completely upgraded, savoring the beauty of details.。

Quantitative conveying rotary feeder

Note: All the pictures in this article were taken by hyde powder manufacturer.。

5、Quantitative conveying rotary feeder structure

The Quantitative conveying rotary feeder structure is introduced as follows:

1. Motor and transmission device

The motor provides power for the Quantitative conveying rotary feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

2. sealing element

Seals are used to ensure the sealing performance of the Quantitative conveying rotary feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

3. impeller

Impeller is the key part of the Quantitative conveying rotary feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

4. Rotor and shell

The rotor is the core component of the Quantitative conveying rotary feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

5. Equalizing exhaust port

The side of the Quantitative conveying rotary feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

Quantitative conveying rotary feeder

6、How much is the Quantitative conveying rotary feeder?

The Quantitative conveying rotary feeder price is introduced as follows:

1. raw material

The raw materials used by different manufacturers will also be different. The better the raw materials, the better the quality and performance of the products and the higher the price. On the contrary, the products made of ordinary materials have low production costs and much lower prices.

2. market demand

When the market demand for Quantitative conveying rotary feeder is relatively high, manufacturers will raise the price in order to get more profits. On the contrary, when the market demand for this product is low, manufacturers will lower the price in order to sell the remaining products as soon as possible.

3. Product technology

The more advanced the technology, the higher the price will be, otherwise the equipment price will be low, and users must pay attention to whether their own technology meets the production requirements when purchasing equipment.

4. manufacturing cost

The manufacturing cost has a great influence on the price. There are many cost factors, including the purchase of raw materials and the quality of products. These factors are all cost inputs. hyde has made a strong balance between the cost input and the sales price, so that the quality of our products can be guaranteed and the comprehensive price of products can reach the degree of customer satisfaction.

5. Sales model

hyde has long used the sales method of small profits but quick turnover to sell products, and the product price, market price and ex-factory price are the same. The purpose of this is to improve the sales volume of products and the visibility of enterprises.

Quantitative conveying rotary feeder

Quantitative conveying rotary feederit is widely used in metallurgy, grain processing, building materials cement, mine and dock，it is usually composed of sealing element, motor reducing gear, rotor and shell, motor and transmission device and equalizing exhaust port，the main features are low noise, handsome appearance, shockproof, favorable price and run smoothly。
